Alarms detect. Cameras capture. But neither stops a thief already inside.
My name is Vladimir Dragovic, and I'm the CEO of Phantom Fog Technologies. This security fog system case study documents a recent installation we completed with our partner integrator Knight & Day Security Inc. at a private garage housing a high-value car collection in Ontario, Canada.
The owner, Rene Monaro, had already invested in alarms and cameras, including redundant camera coverage. But he recognized a gap in his security: nothing in his setup could physically prevent a break-in once it started. That's where our Phantom Fog anti-intrusion system comes in.
The Pipl Systems team joined us to document this installation and walk through the design decisions that went into protecting this two-level facility. In this case study, I'll explain our equipment selection, placement strategy, and alarm integration that makes security fog an active layer of defense rather than just another sensor in the system.
For car collectors, dealership owners, and anyone protecting high-value assets, this case study shows how an anti-intrusion fog security system works in practice, from wiring to deployment logic to the client's own perspective on why he chose this solution.
Project at a Glance
| Field | Details |
|---|---|
| Client | Private car collector |
| Location | Ontario, Canada |
| Facility | Two-level private garage with high ceilings (26+ ft) |
| Vertical | High-value asset protection, luxury car collection security |
| Scope | Multi-zone security fog deployment with alarm integration |
| Equipment | E400CPM and E200CPM security fog systems with integrated 360° motion detectors |
| Integrator | Knight & Day Security Inc. |
| Supplier | Phantom Fog Technologies (exclusive North American distributor of Enforcer Systems) |
Highlights
Active intrusion response. Unlike passive systems that only detect and record, our Phantom Fog anti-intrusion system physically stops intruders by filling the space with dense, vision-blocking fog within seconds of detection.
Modular multi-zone deployment. We configured multiple Enforcer units as master and subunits. Each zone activates independently based on where intruders are detected, not all at once.
Strategic placement for complete coverage. We positioned systems at every entrance and exit across both floors. If intruders push through one fog zone, the next system activates as they progress.
Triple-trigger activation logic. The security fog deploys only when three conditions align: the alarm is armed, the siren activates, and the integrated 360° motion detector confirms presence. This eliminates false deployments.
High-ceiling adaptation. We installed poles to lower the fog units closer to ground level, ensuring effective coverage in spaces with 26+ foot ceilings.
Seamless alarm integration. The fog system connects directly to the existing alarm panel, programmed to work as part of the overall security architecture rather than as a standalone device.
Professional installation by a certified integrator. Our partners at Knight & Day Security Inc. handled site assessment, wiring, equipment mounting, and alarm system programming.
The Problem: Alarms and Cameras Alone Don't Stop Theft
Rene Monaro travels frequently. His garage houses vehicles worth significant money, and he had already built a layered security system: alarms, cameras, and even redundant camera coverage. But he understood the limitation.
Alarms notify. Cameras document. Neither prevents a determined intruder from grabbing what they came for and leaving before anyone responds.
For high-value targets like luxury car collections, jewelry storage, pharmaceutical inventories, or retail environments with expensive merchandise, the window between alarm activation and police arrival is the vulnerability. A professional thief can be in and out in minutes.
The question Rene needed to answer: what actually stops someone once they're inside?
The Solution: Phantom Fog Security Fog System
At Phantom Fog Technologies, we're the exclusive North American distributor of Enforcer Systems. Our product line is designed specifically for commercial and high-risk residential applications where passive security isn't enough.
The core concept is simple: you can't steal what you can't see.

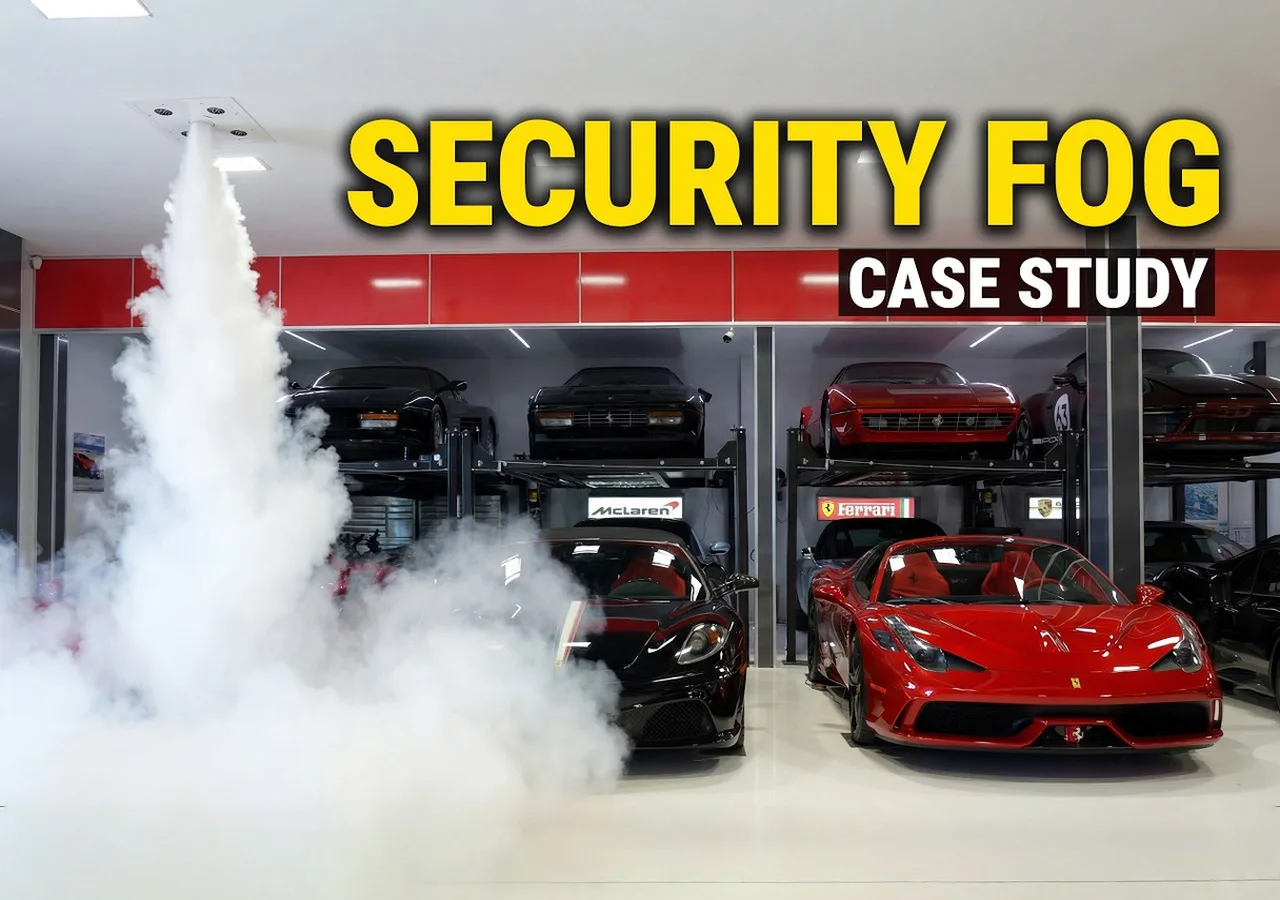

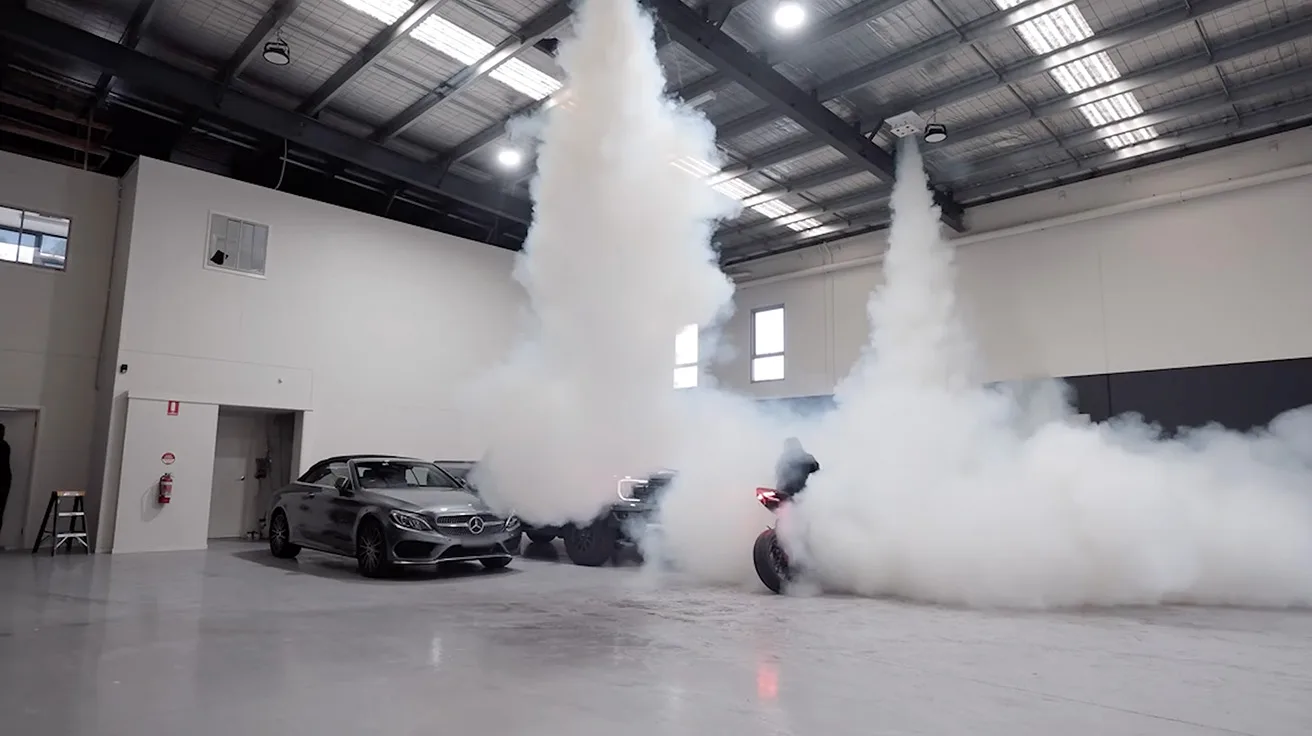

When triggered, our security fog cannon fills the protected space with a dense, non-toxic fog that reduces visibility to near zero within seconds. Our systems use CPM (Compressed Particle Module) technology, which consists of compressed food-grade powders within a compact metal cartridge. This creates a dense particulate fog that rapidly overwhelms and disorients intruders, forcing them to retreat.
For this project, we worked with Knight & Day Security Inc., a professional security integrator based in Ontario. They handled the full installation process, from initial site assessment through final programming.
Learn more about the Enforcer product line.
Site Assessment and Equipment Selection
The first step in any security fog deployment is understanding the space. Our team and the Knight & Day crew evaluated the garage's layout, square footage, cubic volume, ceiling heights, and entry points.
Two factors shaped our equipment selection:
High ceilings.
The main garage level has ceilings exceeding 26 feet. Fog rises, so systems mounted at standard height would lose effectiveness. Our solution: install poles to bring the fog units down closer to the operational zone where intruders would actually be moving.
Two-level layout.
The ground floor houses the car collection. The second floor contains offices and a lounge area where Rene and his guests spend time. Both levels needed protection, and both had multiple entry points.
Based on this assessment, we selected a combination of E400CPM and E200CPM units:
E400CPM security fog system covers over 14,000 cubic feet (400 cubic meters). We deployed these units on the main garage level, where the larger volume required more fog output.

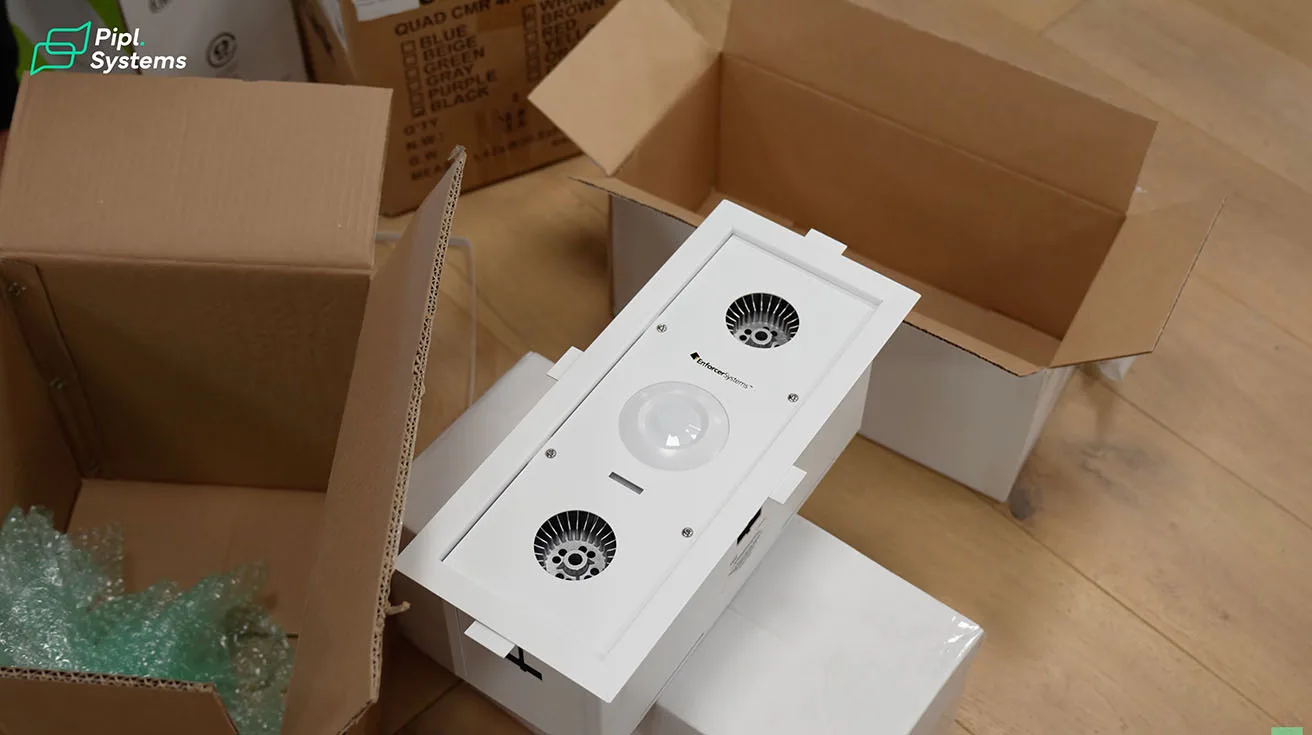

E200CPM security fog system covers over 7,000 cubic feet. We positioned these smaller units on the second floor to protect additional entrances and the office area.

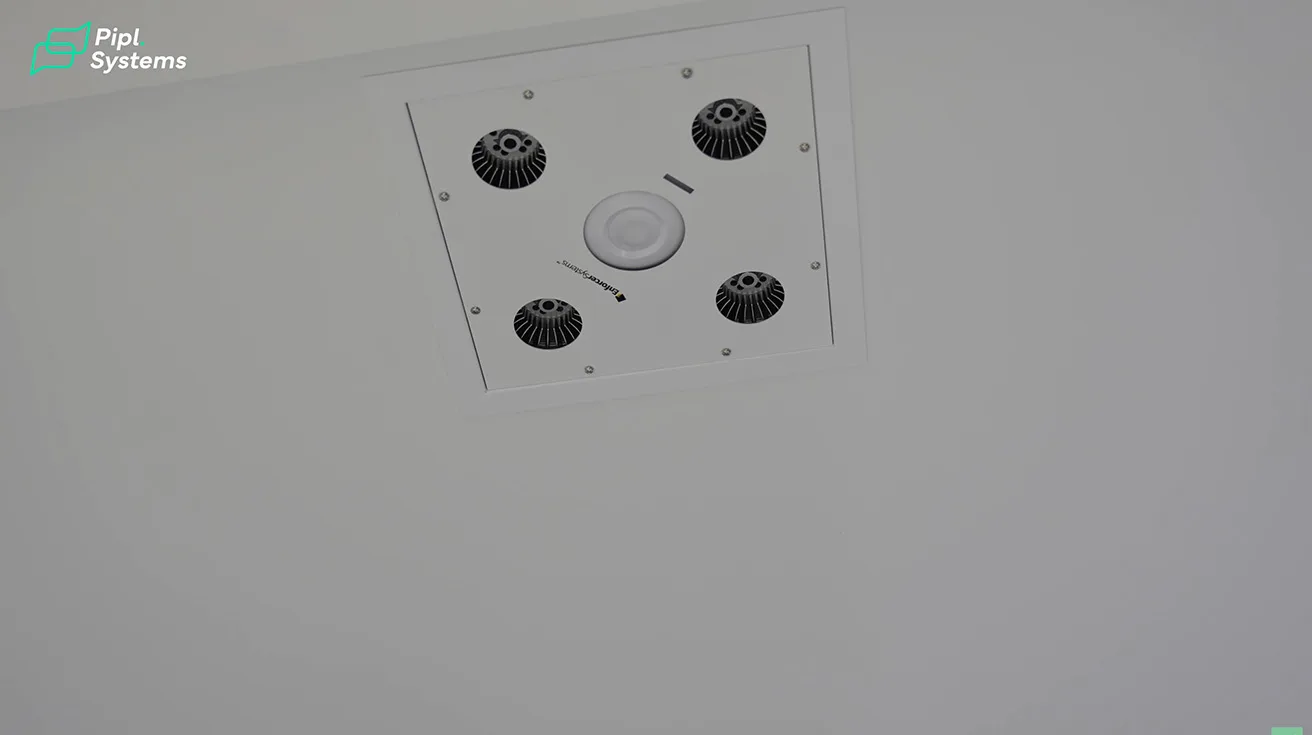

Both systems feature our integrated 360° motion sensor with a unique spherical lens that provides complete detection coverage from the installation point. The sensor includes temperature compensation and anti-photometric detection circuitry to ensure reliable performance.
Installation Process: Wiring, Mounting, and Alarm Integration
Knight & Day Security followed our structured installation process that applies to most security fog system deployments.

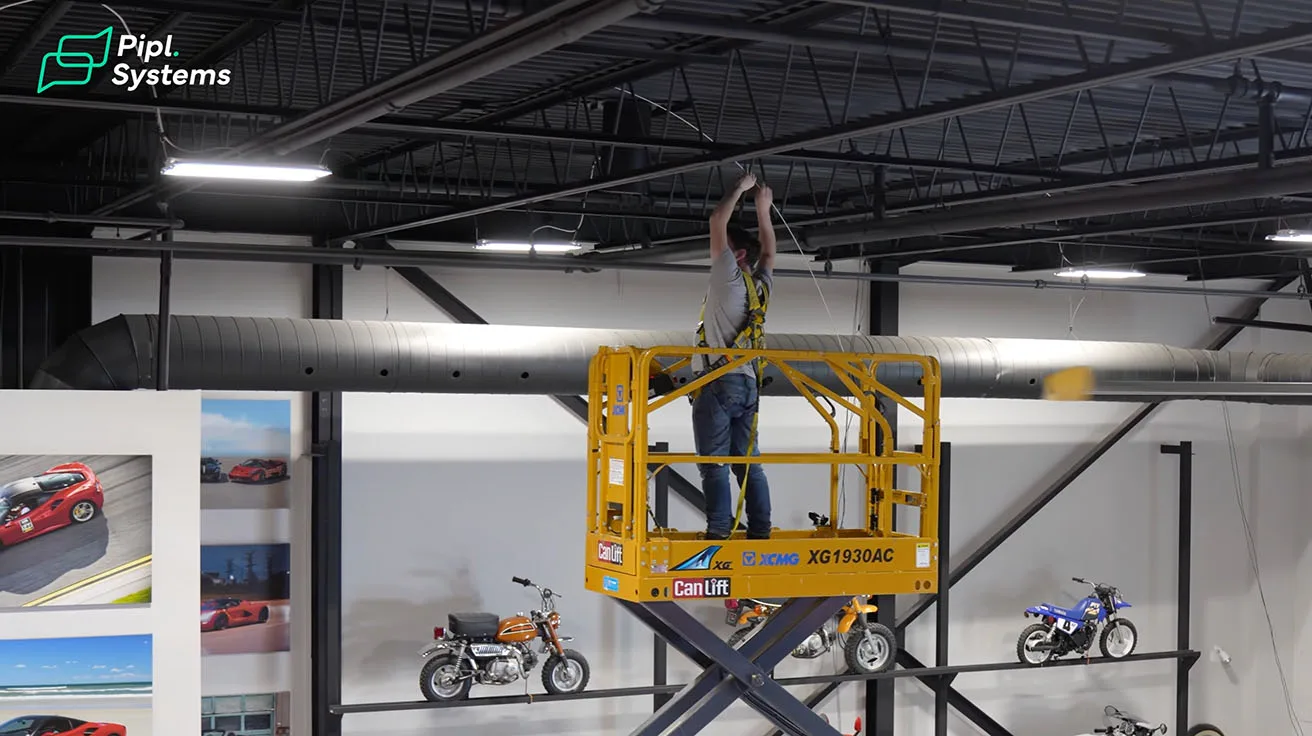

Step 1: Wiring. All cable runs were completed first. This includes power, communication between master and subunits, and connections to the alarm panel. Getting the wiring done before mounting equipment keeps the installation clean and reduces troubleshooting later.

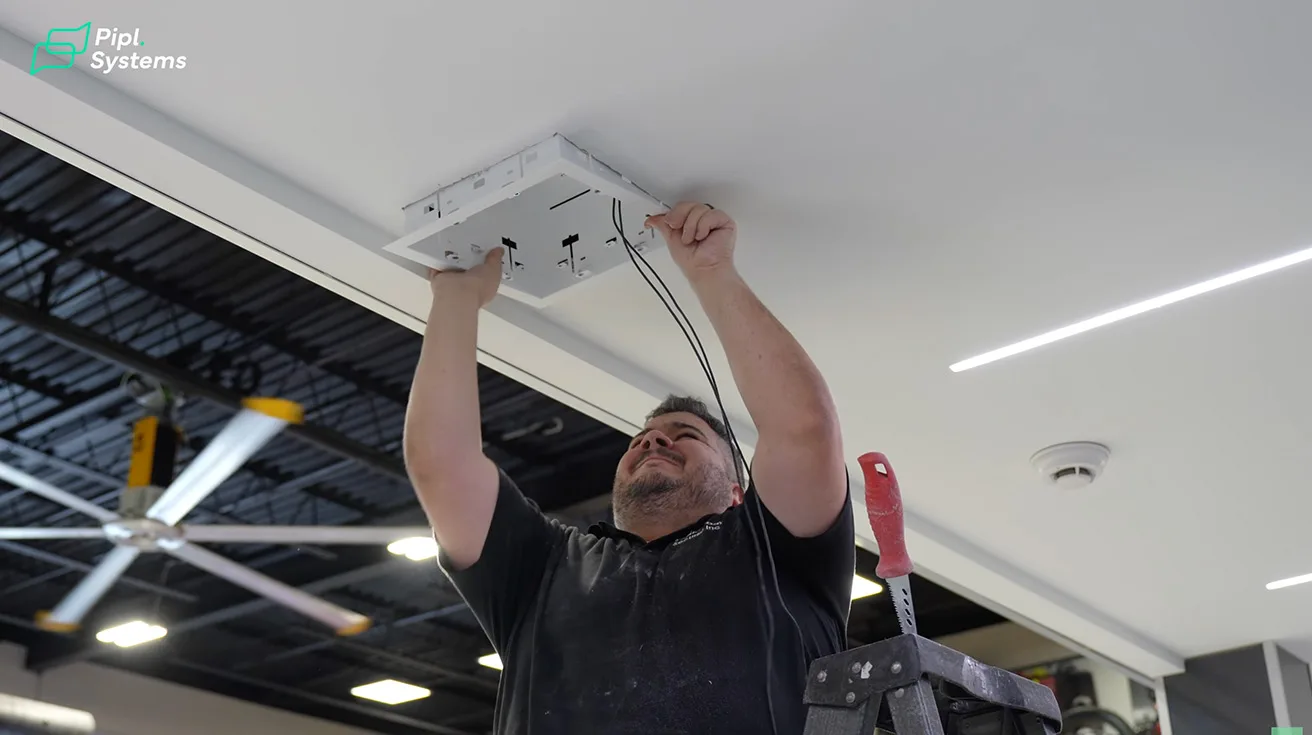

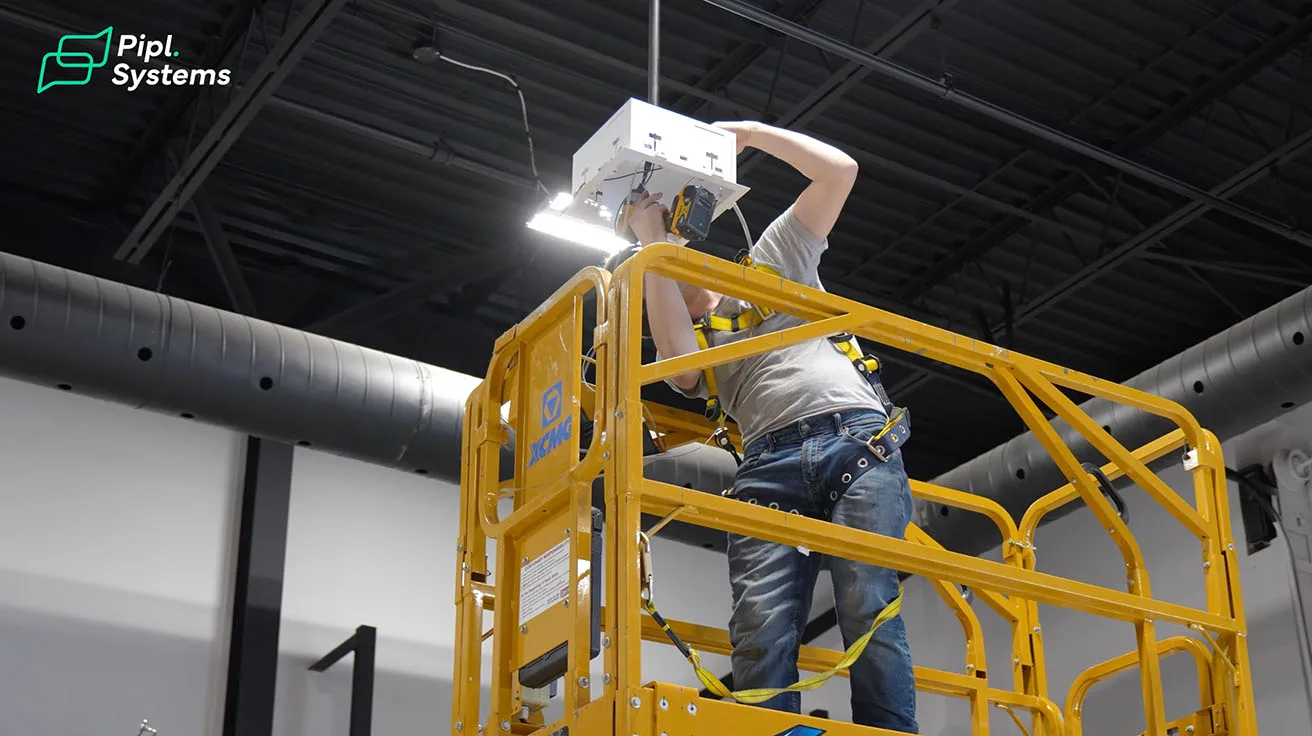

Step 2: Equipment mounting. With wiring in place, the team mounted the fog units at their designated locations. On the main floor, this included the pole-mounted units that bring the fog output down from the high ceilings. Our systems feature a modular design for fast installation with multiple mounting solutions, housed in a strong powder-coated metal enclosure.

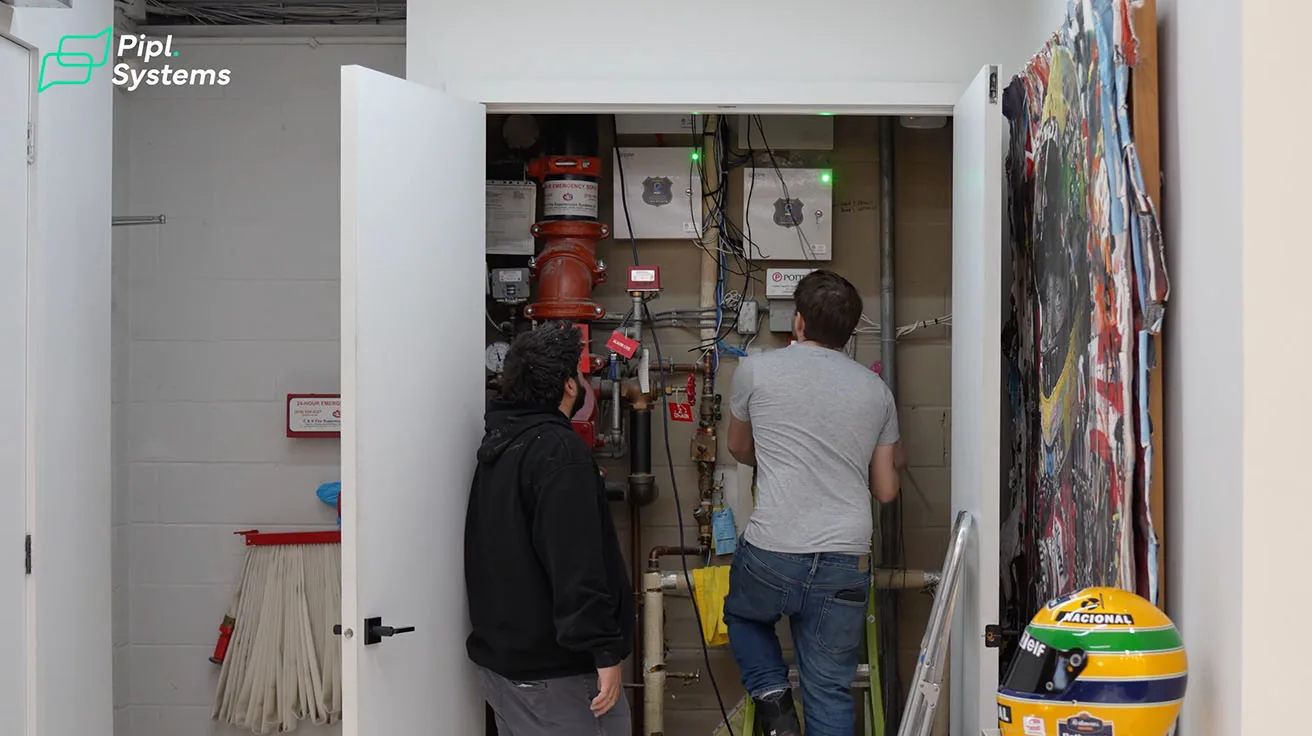

Step 3: Alarm integration. The final and most critical step. The Phantom Fog system connects directly to the existing alarm panel and is programmed to work within the alarm's logic. This isn't a standalone device that operates independently. It's an integrated component of the overall security system.
The security fog and alarm panel integration follows a specific activation sequence designed to eliminate false alarms.
For integrators interested in working with Phantom Fog, contact our team.
Activation Logic: Three Triggers, Zero False Alarms
One of the biggest concerns with any active deterrent system is false activation. Deploying fog unnecessarily creates inconvenience, wastes consumables, and undermines confidence in the system.
We address this with a triple-trigger activation sequence:
Trigger 1: Armed state. The alarm system must be in armed mode. If the system is disarmed (owner is home, staff is working), the fog will not deploy regardless of other conditions.
Trigger 2: Siren activation. The alarm must actually go off. A sensor detecting motion while the system is armed isn't enough on its own.
Trigger 3: 360° motion detector confirmation. Even with the alarm armed and siren active, the fog only deploys when someone is detected directly under one of our fog units by its dedicated 360° motion detector.
This layered approach means the fog activates only during a confirmed, active intrusion, not from a sensor glitch, a pet, or a door left ajar. We really eliminate false alarms as much as possible because it's not that the alarm just needs to go off for our system to work.
Multi-Zone Deployment Strategy: Modular Protection
The Phantom Fog system is modular by design. This installation demonstrates how modularity translates into practical protection.
Independent zone activation.
Each fog unit operates as part of a master-subunit network, but zones activate independently. If an intruder enters through the main garage door and triggers the first fog cannon, only that unit deploys. The second-floor units remain on standby.
Progressive defense.
If the intruder pushes through the first fog zone and continues moving, they'll eventually pass under the next 360° detector, triggering the next fog deployment. The system doesn't dump all its fog at once. It responds to the intruder's actual path through the building.
Full perimeter coverage.
Every entrance and exit on both floors has fog coverage. Whether intruders come through the main garage, a side door, or attempt to access the second floor directly, they'll encounter fog before reaching the high-value assets.
Doesn't matter from which side they come in, we will always protect that area.

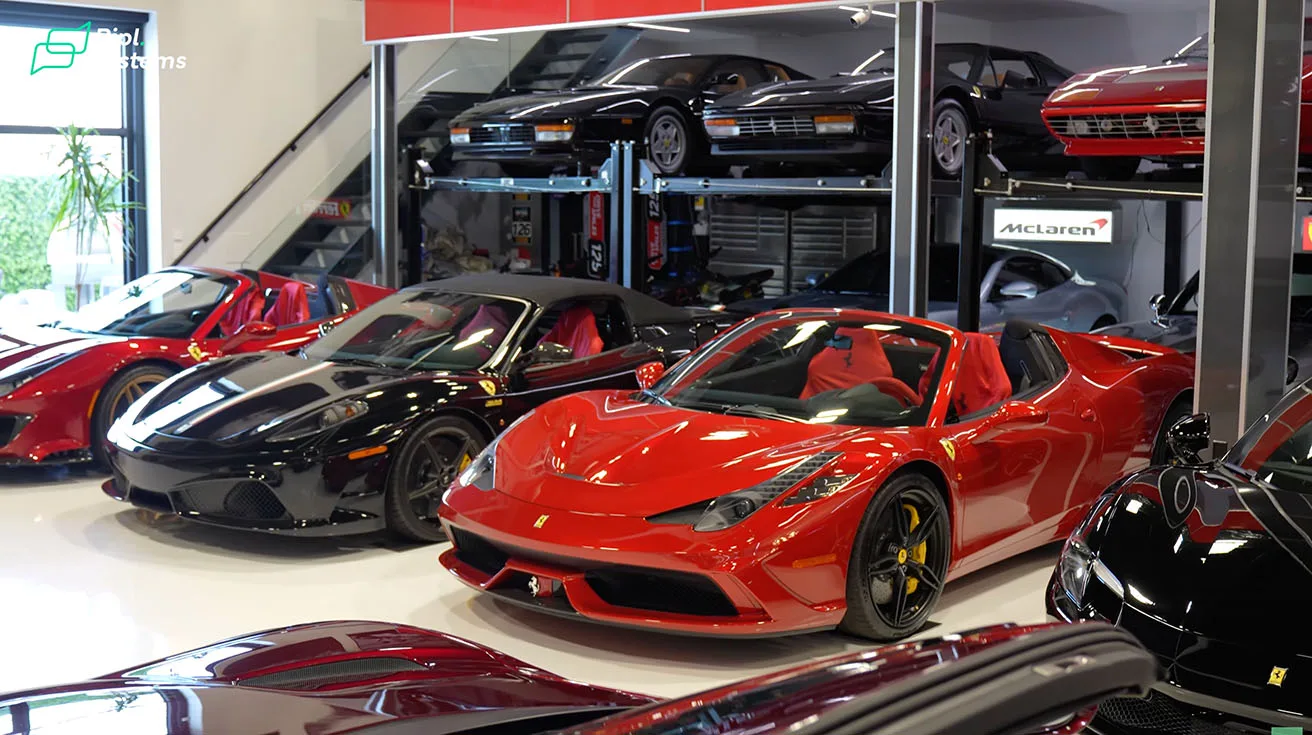

Ground Floor: Protecting the Car Collection
The main garage level is where the value sits. This is also where the highest ceilings created installation challenges.
We installed multiple E400CPM units to cover the large open space. Because fog naturally rises and disperses upward, the 26+ foot ceilings would reduce effectiveness if units were mounted at the roofline.

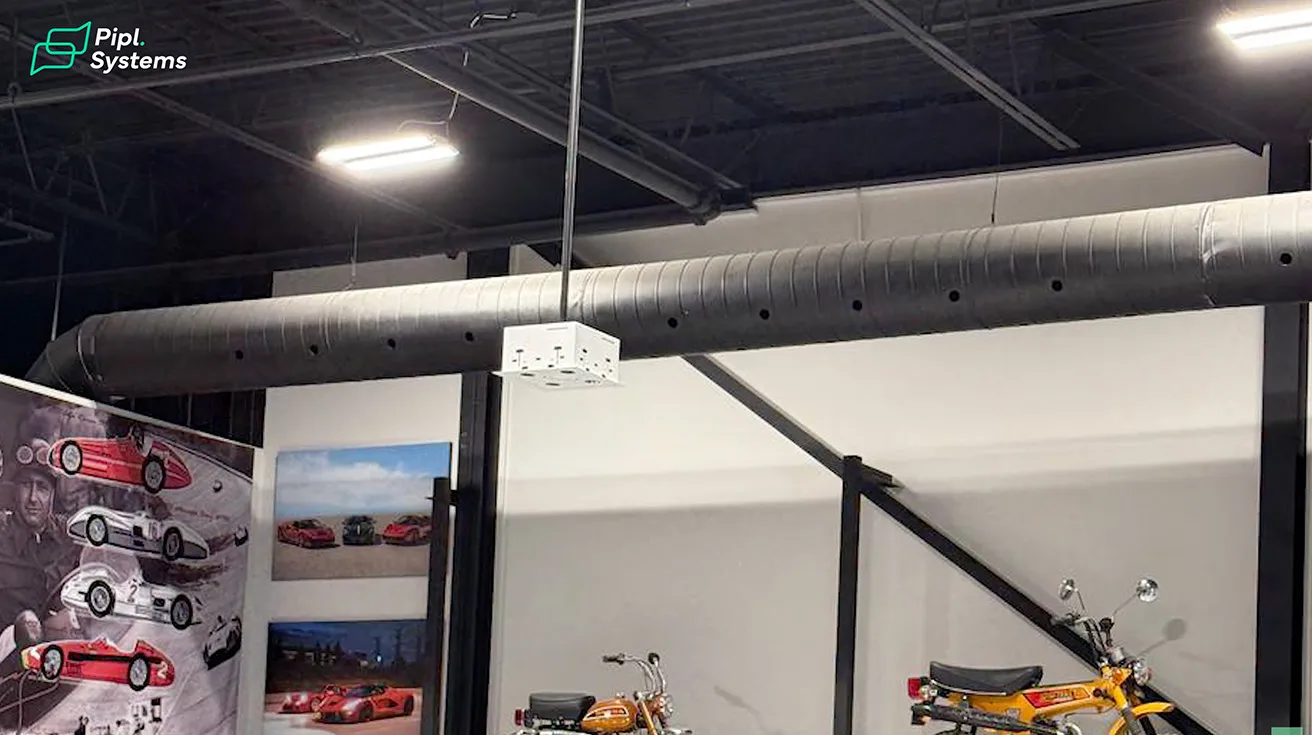

Our solution: custom poles that lower the fog units closer to the operational zone. When fog deploys, it fills the space where a person would actually be standing and moving, not 20 feet above their head. This brings the system closer, so it has more effectiveness when it deploys.
Strategic placement ensures that anyone entering the garage, regardless of which door they use, will be caught by fog before they can reach the vehicles. Remember, the higher the ceilings, that's where all the more fog is going to go first and then come down to cover the area.
Second Floor: Offices, Lounge, and Stairway Coverage
The second floor overlooks the garage and contains Rene's office and lounge area. This is where he and his friends spend time. Even though the cars are downstairs, protecting this level serves two purposes.
First, intruders who somehow bypass ground-floor fog and attempt to access the building through an upstairs entry point will be stopped before descending to the garage.
Second, the second floor has its own valuables and is a space the owner actually uses. Protecting it completes the perimeter.

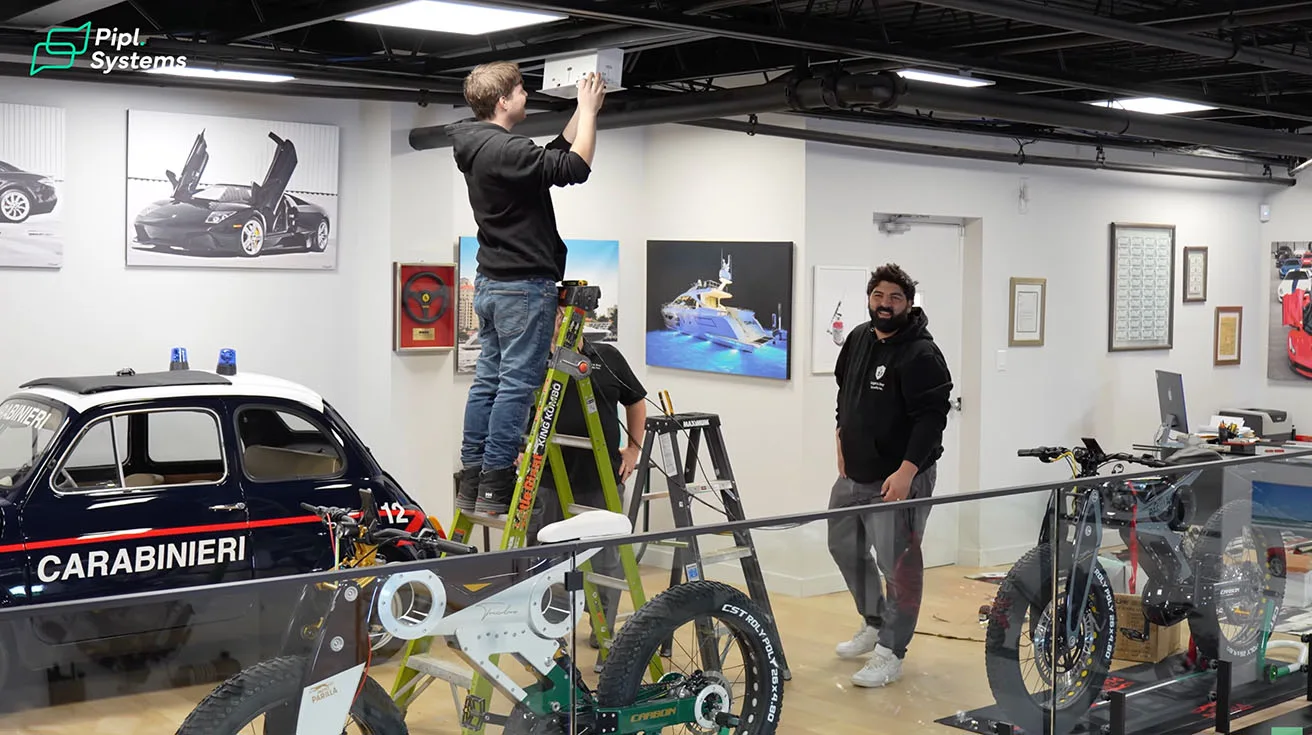

We installed both E200CPM and E400CPM units on this level, sized according to each zone's volume. Smaller units cover individual entry points. Larger units cover the open areas and stairway access.
If they come from the second floor, they will be stopped from going down. If they come up from the bottom, our E400CPM systems will stop them from reaching the second floor. So as you can see, that's how we decided where to strategically position our systems to cover all of the entrances, all of the exits. If, God forbid, they come and try to rob this place, they will be stopped in their tracks.
Client Perspective: Why Security Fog Made Sense
Rene Monaro shared his reasoning during the case study filming.
He already had alarms. He already had cameras, including redundant camera systems. But he recognized what those systems couldn't do.
"I always worry since I travel a lot, and I always worry about my cars. I know that I have alarms, I have cameras, I have redundancy cameras, but I think that this is a perfect solution for me because when somebody breaks in, and they can't see, they won't steal."
Rene was introduced to Phantom Fog through a recommendation and reviewed our previous installations before committing. The decision came down to a simple principle: active protection beats passive documentation.
"Phantom Fog was highly recommended to me, and I've seen some of the work that they've done in the past, and it's perfect for my solution. Hopefully, I never need to use it, but I have a lot of friends who are also car collectors, so I'm sure that I'm going to be talking to them for a solution for them because they have the same problems as I do."
Explore more security projects covered by Pipl Systems in partnership with leading integrators and manufacturers.
Results and Takeaways
This garage security system for luxury cars now includes a complete fog protection layer integrated with existing alarms and cameras. The deployment demonstrates several principles that apply to similar high-value environments.
Active deterrence changes the equation.
Cameras and alarms are necessary, but they're reactive. Security fog is proactive. It doesn't wait for police response. It immediately degrades the intruder's ability to operate.
Modular design scales to the space.
The combination of E200CPM and E400CPM units shows how the system adapts to different zones within a single facility. Larger units for open areas, smaller units for secondary entry points.
Integration matters more than standalone features.
The fog system works because it's wired into the alarm panel and follows the same logic. It's not an afterthought bolted onto an existing system. It's part of the architecture.
Professional installation eliminates guesswork.
Knight & Day Security Inc. handled site assessment, equipment selection, placement strategy, wiring, and programming. This isn't a DIY product. Proper deployment requires understanding both the space and the technology.
Read more about Phantom Fog security systems.
About the Companies Involved
Phantom Fog Technologies
As a small business owner myself, alongside my co-founder Al Frisina, I've intimately understood the devastating impact of break-ins. It's not just about stolen goods; it's about the crippling downtime, repair costs, and the emotional weight that follows. Watching businesses in our community, owned by people just like us, targeted by intruders, I knew we needed a more effective defense than what traditional security systems offered. This personal experience fueled our search for a real-time solution.
That search led us to Enforcer Systems, a fog-based security solution founded in Australia and trusted globally. Enforcer's core technology offers what traditional security can't: immediate, active defense. The moment an intruder breaches a protected space, the system fills the environment with a dense, non-toxic fog that severely limits visibility, forcing intruders to flee instantly and preventing theft and confrontation without damage to property or inventory. It is with this proven, immediate protection in mind that we established Phantom Fog Technologies to bring this vital defense to businesses across North America.
Our mission is to deliver innovative, automated security solutions that stop threats in real-time, empowering business owners, security professionals, and partners with the control, confidence, and ongoing support to protect what matters most. We pride ourselves on our robust partner ecosystem, providing training and support to ensure every deployment is successful, fostering strong relationships within the security industry.
Learn more about Phantom Fog Technologies.
Knight & Day Security Inc.
Knight & Day Security is a professional security integrator based in Ontario, Canada. They provide alarm systems, video surveillance, monitoring services, and smart automation for residential and commercial clients.
This installation demonstrates their capability to work with specialized systems like Security Fog alongside traditional security infrastructure. They are exactly the kind of partner we look for: experienced integrators who understand that effective security requires layers, not just sensors.
Pipl Systems
Pipl Systems produces video content and case studies for the security industry, documenting real-world deployments and product applications. This case study was filmed in collaboration with our team and Knight & Day Security Inc.
Discover vetted security system integrators and installers in Toronto and the Greater Toronto Area to keep your home or business secure.
Partner Perspective: Why This Project Matters

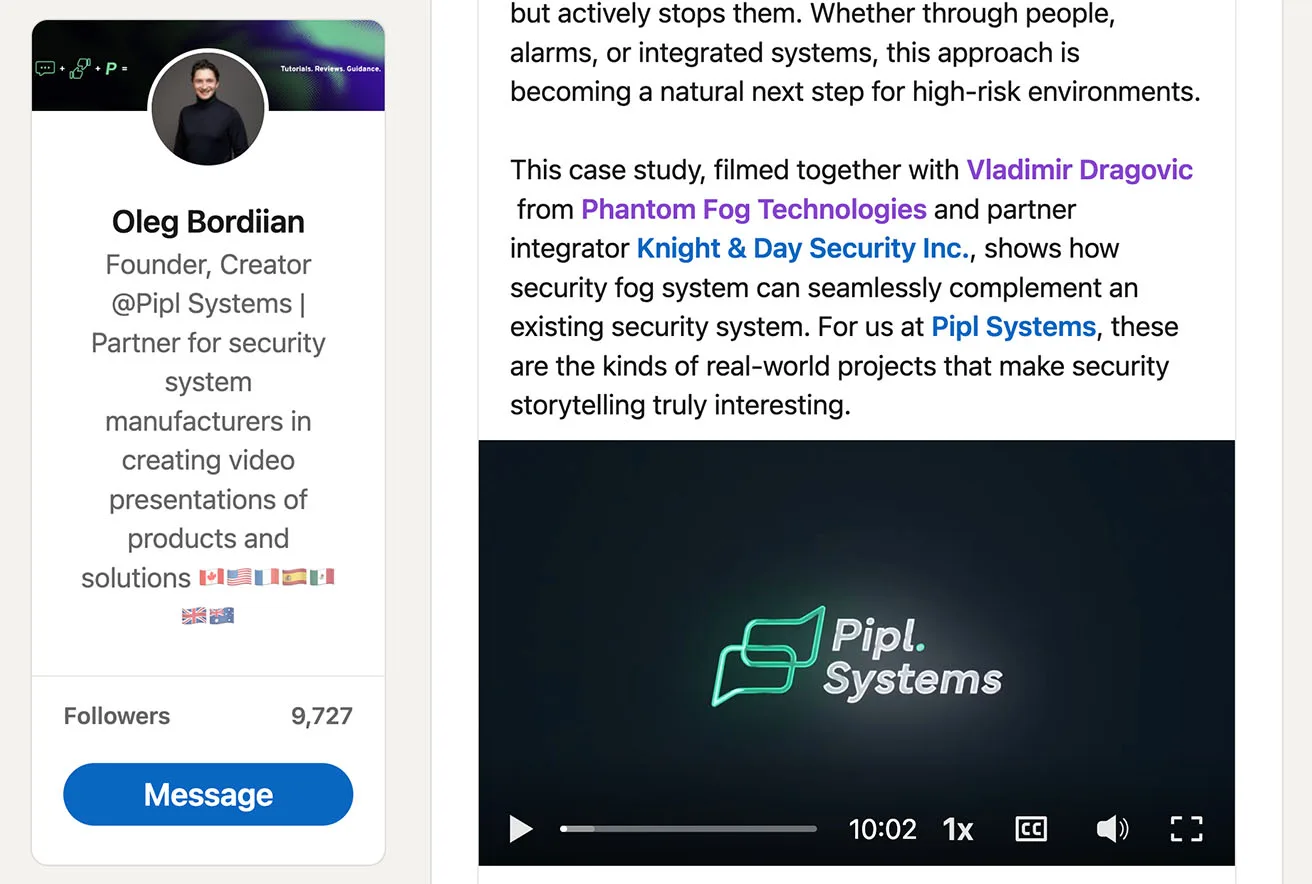

Oleg Bordiian, Founder of Pipl Systems, shared his perspective on the project:
"Anti-intrusion fog security systems are still not very common in North America. On one hand, only a limited number of integrators have hands-on experience with this type of solution. On the other, we clearly see a growing shift toward active deterrence security that doesn't just record incidents, but actively stops them. Whether through people, alarms, or integrated systems, this approach is becoming a natural next step for high-risk environments.
This case study, filmed together with Vladimir Dragovic from Phantom Fog Technologies and partner integrator Knight & Day Security Inc., shows how a security fog system can seamlessly complement an existing security system. For us at Pipl Systems, these are the kinds of real-world projects that make security storytelling truly interesting."
Read the full post on LinkedIn.
Ready to Explore Security Fog for Your Facility?
If you're protecting a car collection, dealership, warehouse, retail location, or any space where high-value assets are at risk, security fog may be the layer your system is missing.
At Phantom Fog Technologies, we work with integrators across North America to design and deploy fog security solutions tailored to specific environments. Whether you're an end user looking for protection or an integrator exploring new product lines, we can connect you with the right resources.
For end users: Contact us to be connected with a certified integrator in your area. You can go to our website and find our partners who already work with us, or simply call us and we will be more than happy to put you in touch with one of our partners to evaluate and complete the installation you need to protect your property.
For integrators and dealers: If you would like to partner up with us as a distributor or dealer, please contact us. We're going to help you and set you up to become part of our network.
Contact Phantom Fog Technologies.
FAQ: Security Fog System for High-Value Asset Protection
How quickly does the security fog deploy after an intrusion is detected?
The Enforcer system fills a protected space within seconds of activation. Our CPM (Compressed Particle Module) cartridge burns within 12 seconds, and the fog output is immediate. By the time an intruder realizes what's happening, visibility is already compromised.
Is security fog safe for people, vehicles, and property?
Yes. Our systems use CPM technology consisting of compressed food-grade powders. The fog is non-toxic and doesn't damage vehicles, electronics, artwork, or other property. It dissipates naturally and leaves no residue. The fog is designed to disorient and force intruders to retreat, not to harm.
How long does the fog remain in the protected area?
The dense particulate fog will remain in the air for approximately 30-45 minutes per activation, preventing visibility throughout this period. This gives ample time for authorities to respond while keeping the intruder disoriented and unable to locate valuables.
What happens if the fog system triggers accidentally?
Our triple-trigger activation logic minimizes false deployments. The system requires armed state, siren activation, and 360° motion detection before deploying. However, if fog does deploy, it dissipates on its own and causes no damage to property or inventory.
Can security fog integrate with my existing alarm system?
Yes. The Phantom Fog system is designed to connect directly to standard alarm panels. It operates as part of your overall security architecture, not as a separate standalone device. We program everything into the alarm system during installation.
How much area does each Enforcer unit cover?
The E400CPM covers over 14,000 cubic feet (400 cubic meters). The E200CPM covers over 7,000 cubic feet. For spaces with high ceilings, we recommend mounting adjustments to ensure fog reaches the operational zone effectively.
Do I need a professional installer for security fog?
Yes. Proper deployment requires site assessment, strategic placement, professional wiring, and alarm system programming. We work exclusively through trained integrator partners like Knight & Day Security Inc.
Is security fog available in Canada and the United States?
Yes. Phantom Fog Technologies is the exclusive North American distributor of Enforcer Systems. We have dealer and integrator partners across both countries.
Can security fog protect spaces other than car collections?
Absolutely. Security fog is used in jewelry stores, pharmacies, cannabis dispensaries, warehouses, data centers, retail locations, and any environment where high-value assets need active protection beyond alarms and cameras. We have systems for any size space.
