Introduction to UniFi AI PTZ Precision
What Makes It the New Flagship in the UniFi Lineup
The UniFi AI PTZ Precision marks a significant leap forward for Ubiquiti’s surveillance ecosystem. This industrial-grade 4K PTZ camera integrates a powerful 31x optical zoom with a 1/1.8″ 8MP image sensor and advanced LiDAR technology. Built specifically for long-range surveillance with instant focus and subject lock, it offers unmatched clarity across diverse deployment zones—from city infrastructure to large commercial sites.
What truly sets the Camera AI PTZ Precision apart is the inclusion of a 905 nm LiDAR system, enabling faster Auto Focus during pan, tilt, and zoom movements. It’s a major evolution over the G4 PTZ and AI PTZ Industrial, especially in dynamic environments where instant reaction to human or vehicle motion is essential. With the support of new Faster PTZ Motors and real-time AI recognition, the Precision model brings the UniFi Protect platform into a new era of proactive, intelligent video monitoring.
UniFi Protect Camera System and Viewer Integration
This new UniFi Protect AI PTZ was designed to function as a precision-focused node within the broader UniFi Protect camera system. It integrates seamlessly with the UniFi viewer, enabling operators to trigger presets, respond to alerts, and track objects with ultra-low latency. When paired with a network of UniFi AI cameras, it acts as the central tracking unit, reacting to triggers and smart tags set by other sensors or spotter cameras.
Support for preset patrols, scoped alarm actions, and deep link video playback makes it a reliable part of any advanced perimeter defense system. Whether you’re managing dozens of UniFi Protect cameras across a multi-site layout or running a high-volume access zone, the AI PTZ Precision ensures your operators don’t just watch—they react.

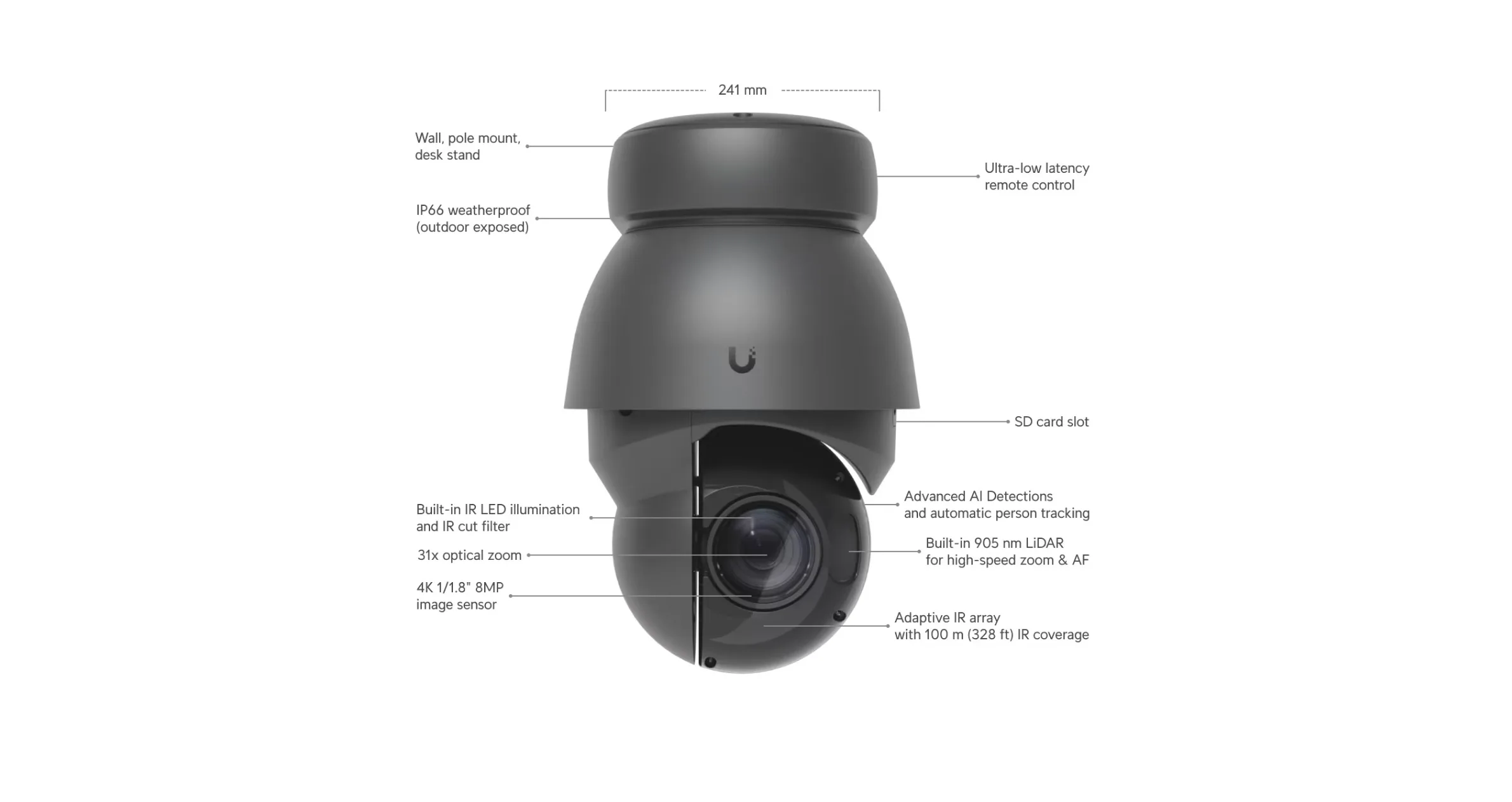

Technical Overview and Build
Industrial-Grade Construction and IP66 Rating
The UVC-AI-PTZ-Precision-B and UVC-AI-PTZ-Precision-W variants are built for rugged outdoor deployments. With an aluminum alloy and polycarbonate housing, they provide resistance to environmental impact and daily mechanical stress. The camera is IP66-rated, protecting against heavy rain, dust, and debris in exposed environments.
Unlike previous-generation PTZs, this model includes a complete mounting kit out of the box, including wall, pole, and desk stand options. The structure is designed for long-term use in extreme operating temperatures, from -40° to 50°C, ensuring continuous performance across seasons and locations.
Weight, Dimensions, Materials, Mount Types
The AI PTZ Precision is notably heavier than other UniFi PTZ units, with the main camera body weighing 5.5 kg (12.1 lb) without mounting hardware. This weight reflects its industrial-grade motors, reinforced shell, and embedded LiDAR components. Once installed, the pole mount adds another 300 g, and the wall mount (pedent) comes in at 2.6 kg.

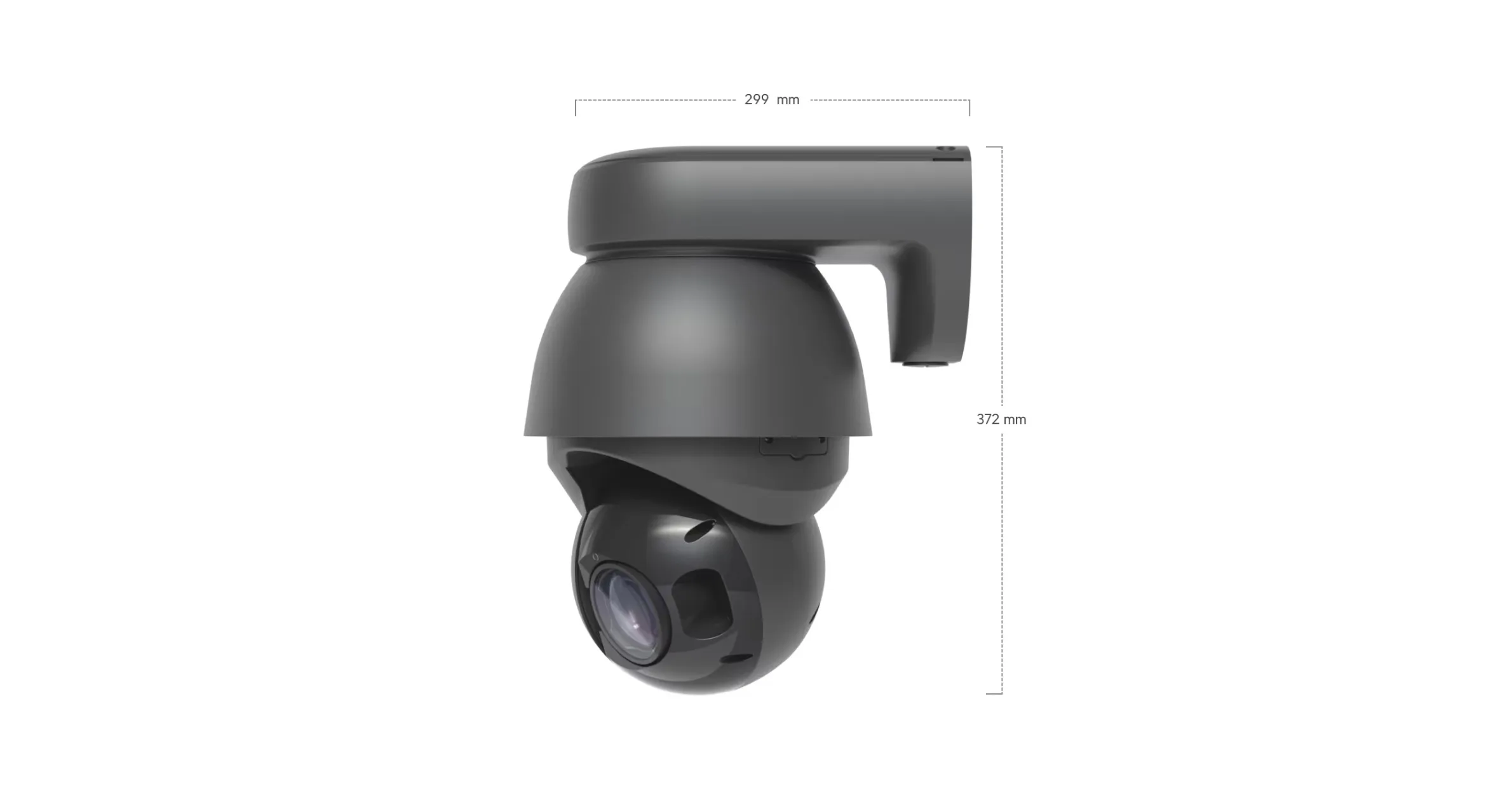

Its footprint is substantial—Ø241 x 349 mm without mount and 372 x 241 x 299 mm when fully equipped. This increased mass isn’t just for show—it enables vibration-free stability during fast pan-tilt-zoom transitions, even at full 31x zoom. The powder-coated aluminum and robust mounting frame support 2–4″ and 4.5–6″ pole diameters, making it highly flexible for existing infrastructure or new buildouts.
Optics and Imaging Performance
8MP 1/1.8″ Sensor and 4K Output
At the core of the UniFi AI PTZ Precision is a 1/1.8″ 8MP image sensor capable of delivering true 4K resolution (3840 × 2160) at 30 FPS. This large-format sensor ensures sharp detail capture in both wide-angle and telephoto views, with excellent performance under varying lighting conditions. The 16:9 aspect ratio is fully optimized for modern UniFi Protect viewer displays, ensuring that recorded and live footage are both pixel-accurate and frame-consistent.
Compared to older UniFi PTZ models, this next-gen PTZ camera exhibits notably reduced motion blur and better tonal range across shadows and highlights, crucial for perimeter surveillance and long-range coverage. Whether you’re monitoring a public intersection or a secured rooftop, the video output holds detail across the frame without compression artifacts.

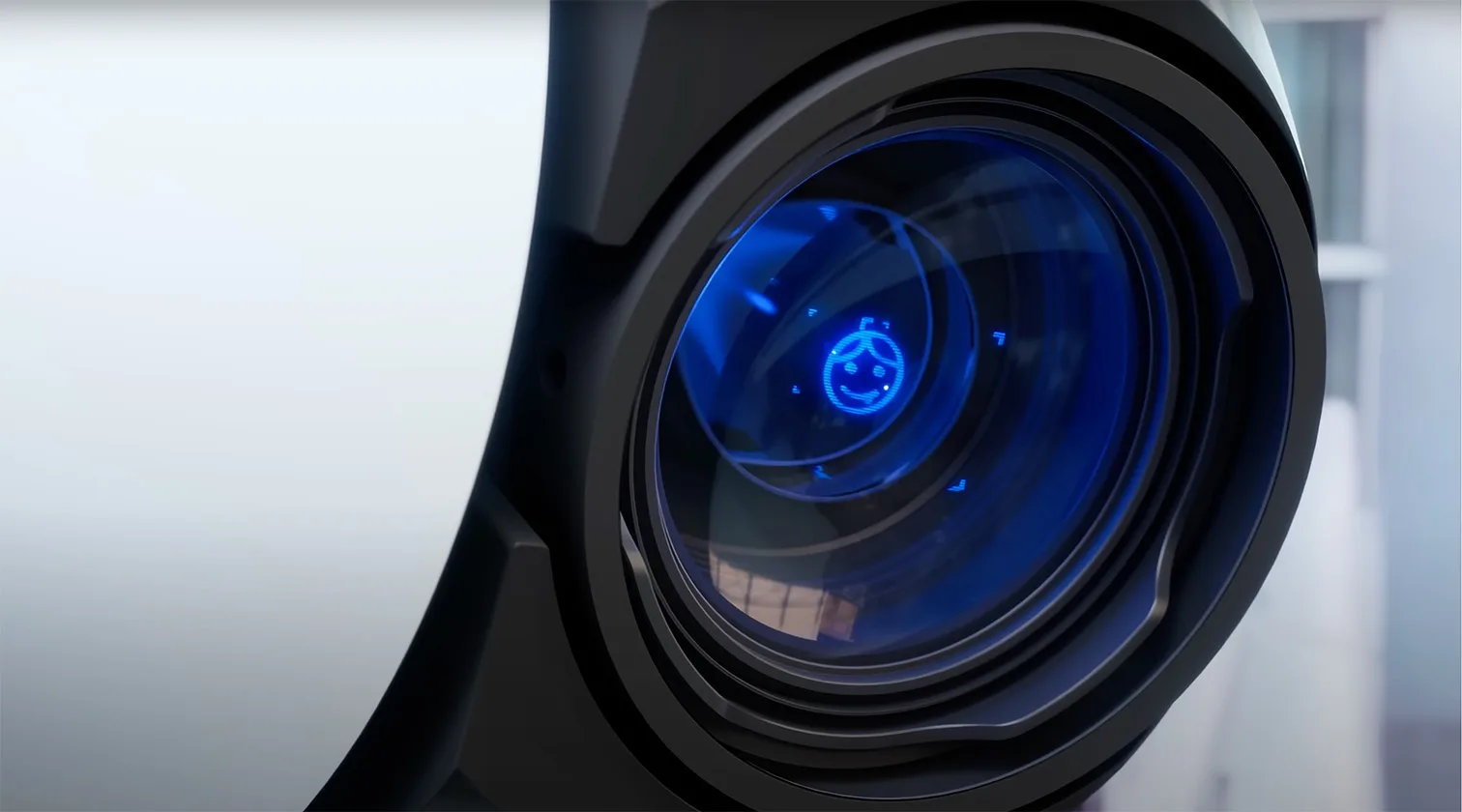

LiDAR-Assisted Auto Focus and Low-Light IR Array

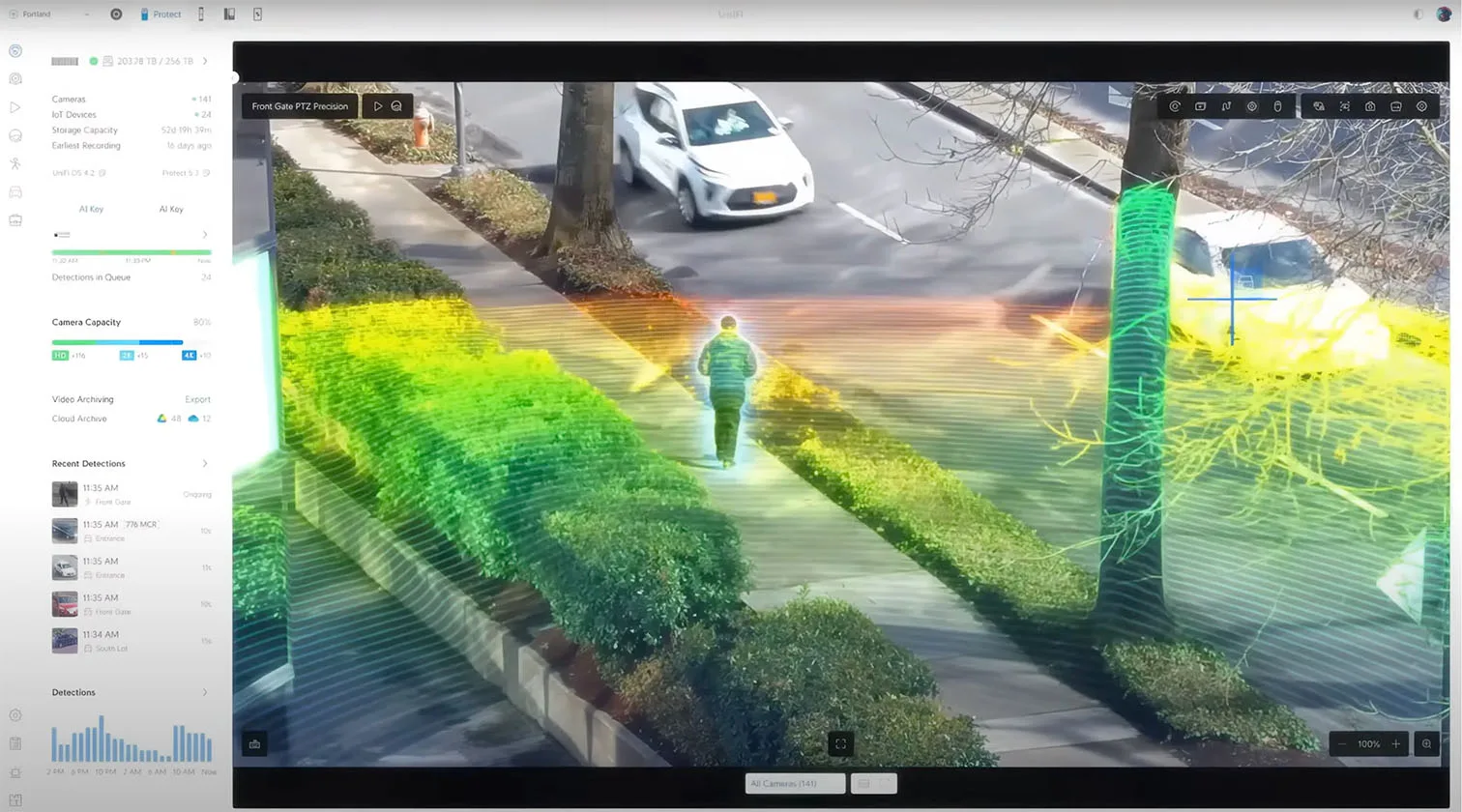

The integrated 905 nm LiDAR system is one of the standout features of the UVC-AI-PTZ-Precision. It enables lightning-fast autofocus, even when rapidly zooming from a distant object to a nearby subject. Unlike contrast-based systems, LiDAR provides instant depth sensing, resulting in fewer focus hunting issues and smoother transitions.

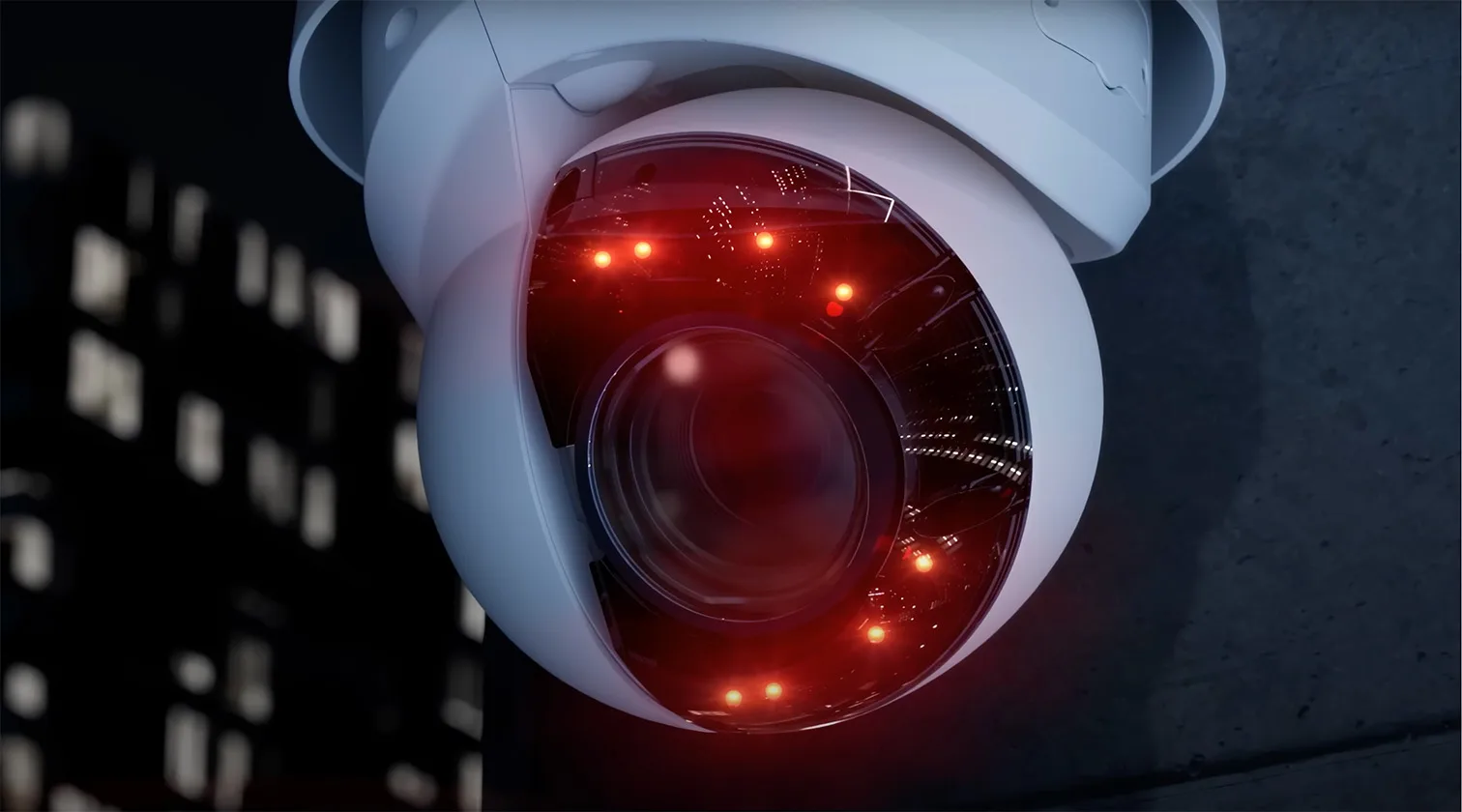

This is particularly useful when paired with the adaptive IR LED night vision system, which offers 100 m (328 ft) of coverage. The IR array automatically adjusts intensity based on subject distance, minimizing overexposure at close range while maintaining clarity at distance. Night footage remains crisp and highly detailed—ideal for sites that operate around the clock.

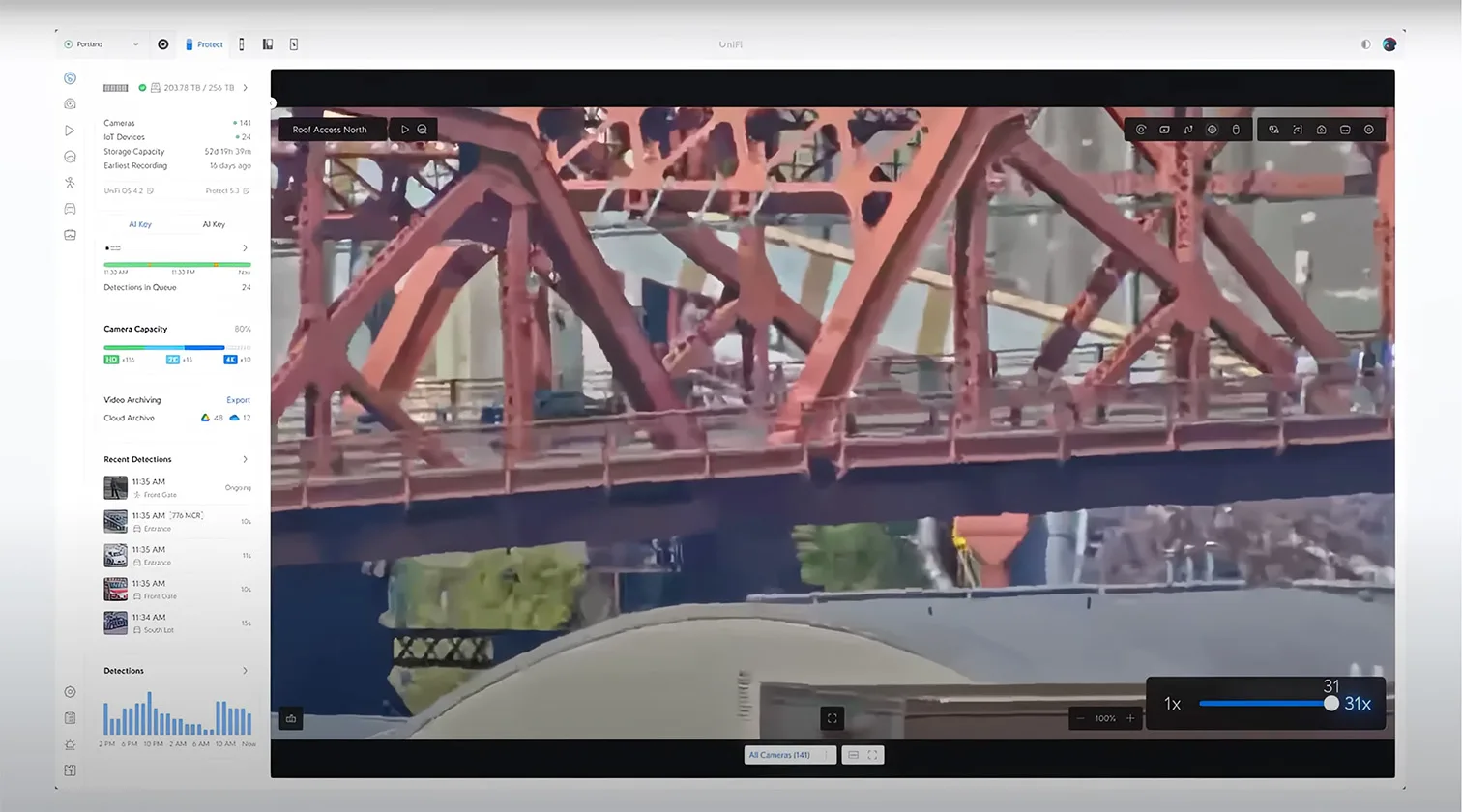

31x Optical Zoom and Field of View Breakdown

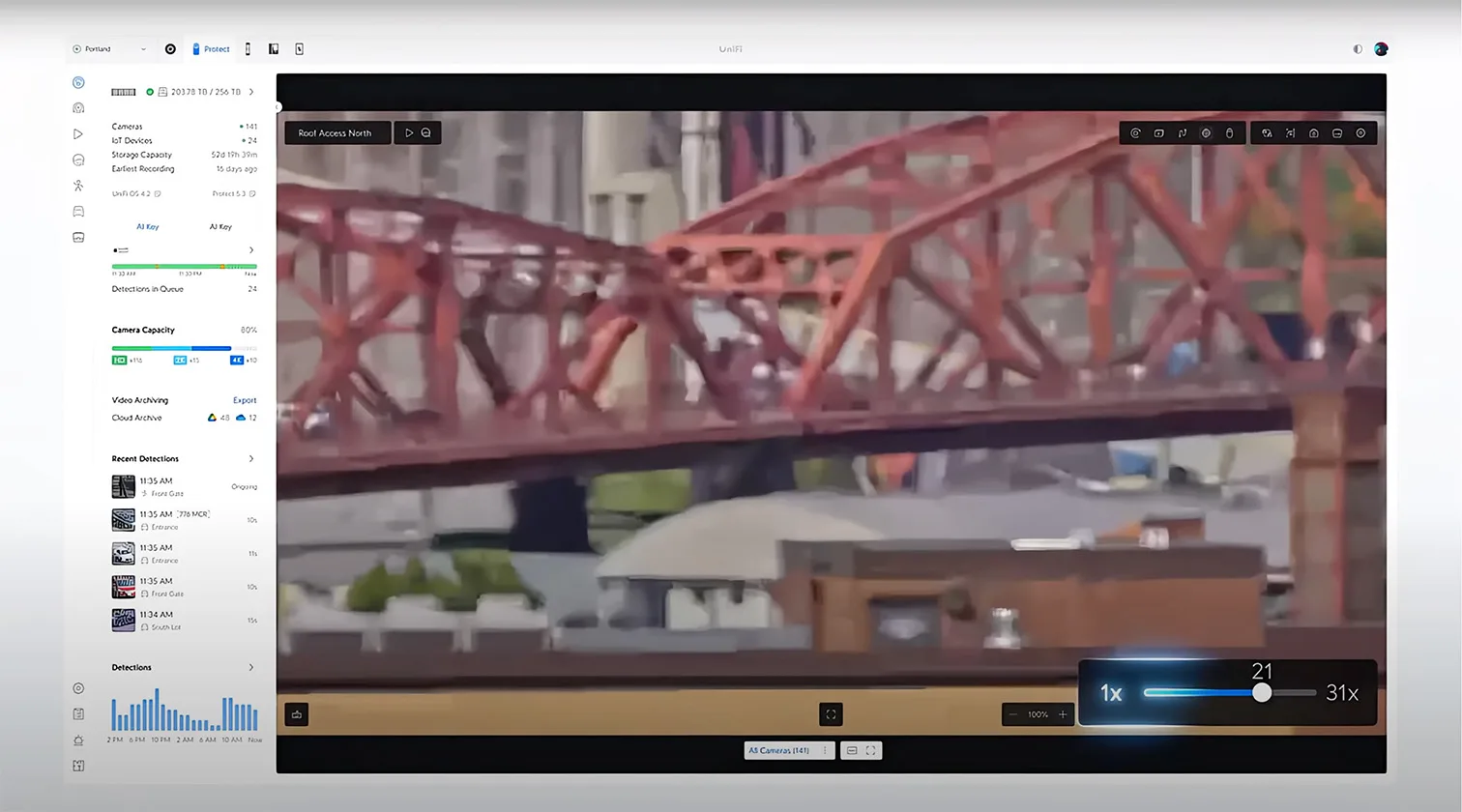

This new UniFi PTZ delivers a 31x optical zoom range, giving it a horizontal field of view from 61.7° (wide) down to 2.1° (telephoto). Vertically, it spans 35.8° to 1.2°, allowing the operator to inspect multi-story structures or distant license plates without distortion.
When deployed with neighboring UniFi AI cameras or motion zones, the PTZ Precision can snap between preset locations instantly, zooming in on stairwells, gates, or parking lots based on real-time triggers. The lens assembly remains internally stabilized, meaning no visual shake even during aggressive directional changes.
Smart Detection and AI Capabilities
Face and License Plate Recognition in UniFi Protect

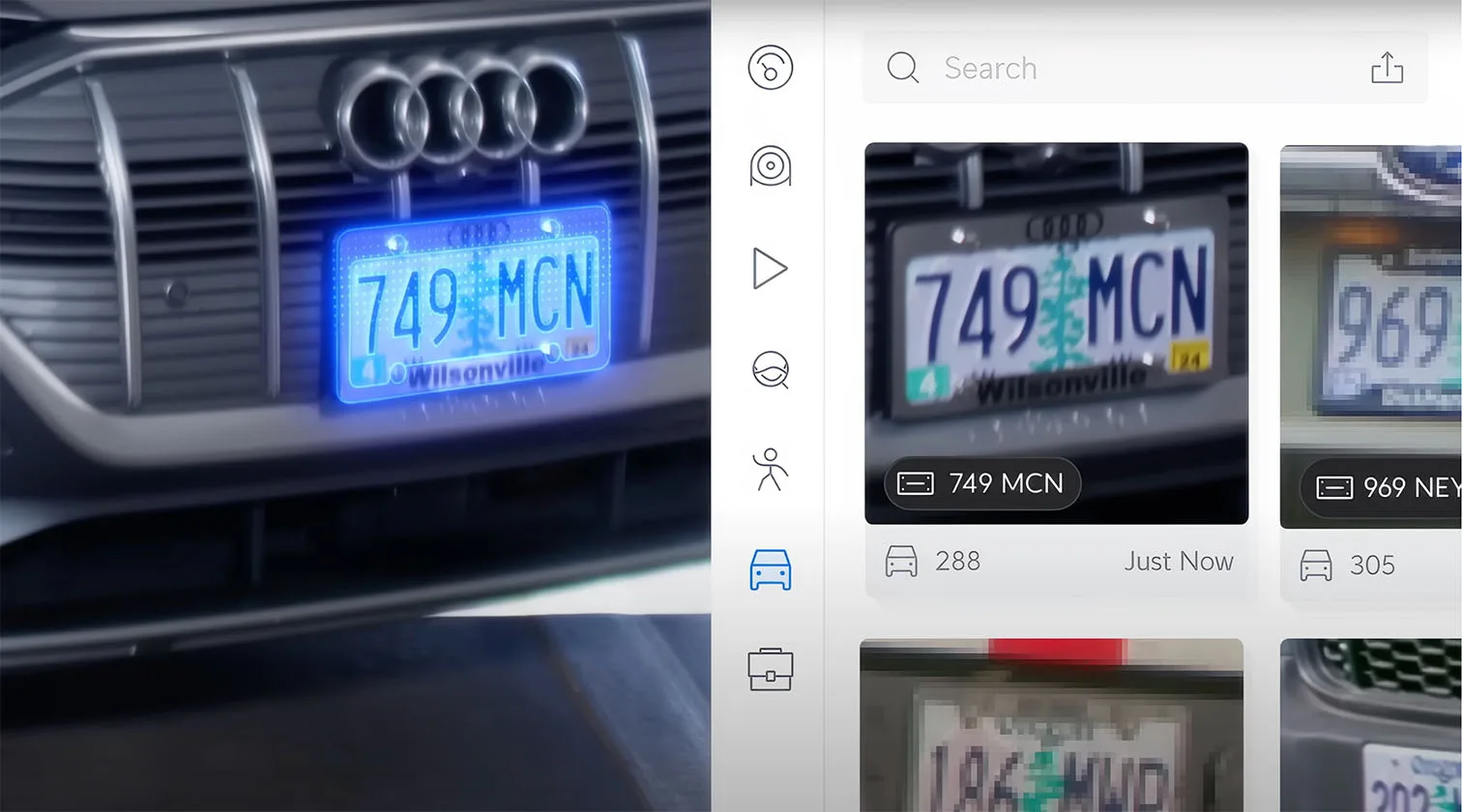

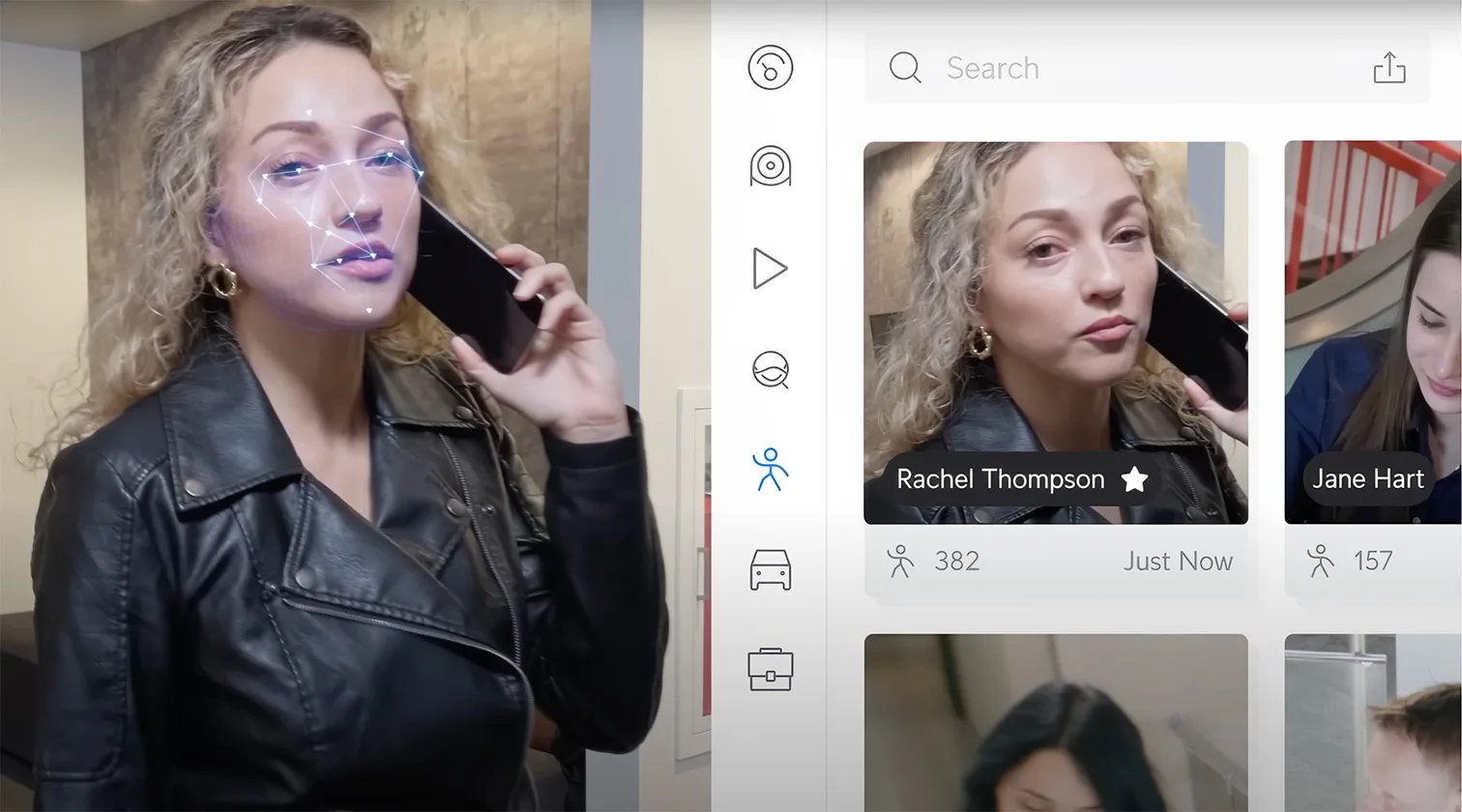

The UniFi Protect camera system fully supports facial and license plate recognition with the AI PTZ Precision. Detected faces are identified and indexed directly within the Protect interface, including snapshot thumbnails, timestamped logs, and unique profile tagging. Whether it’s a returning employee or a restricted individual, the camera tracks and catalogs these events automatically.
For vehicle monitoring, the UVC-AI-PTZ-Precision captures plates clearly, even at 31x zoom. Recognition data syncs with the Protect cloud archive, making retrospective searches fast and accurate. In private or enterprise settings, this functionality is critical for access logging, incident analysis, and compliance audits.

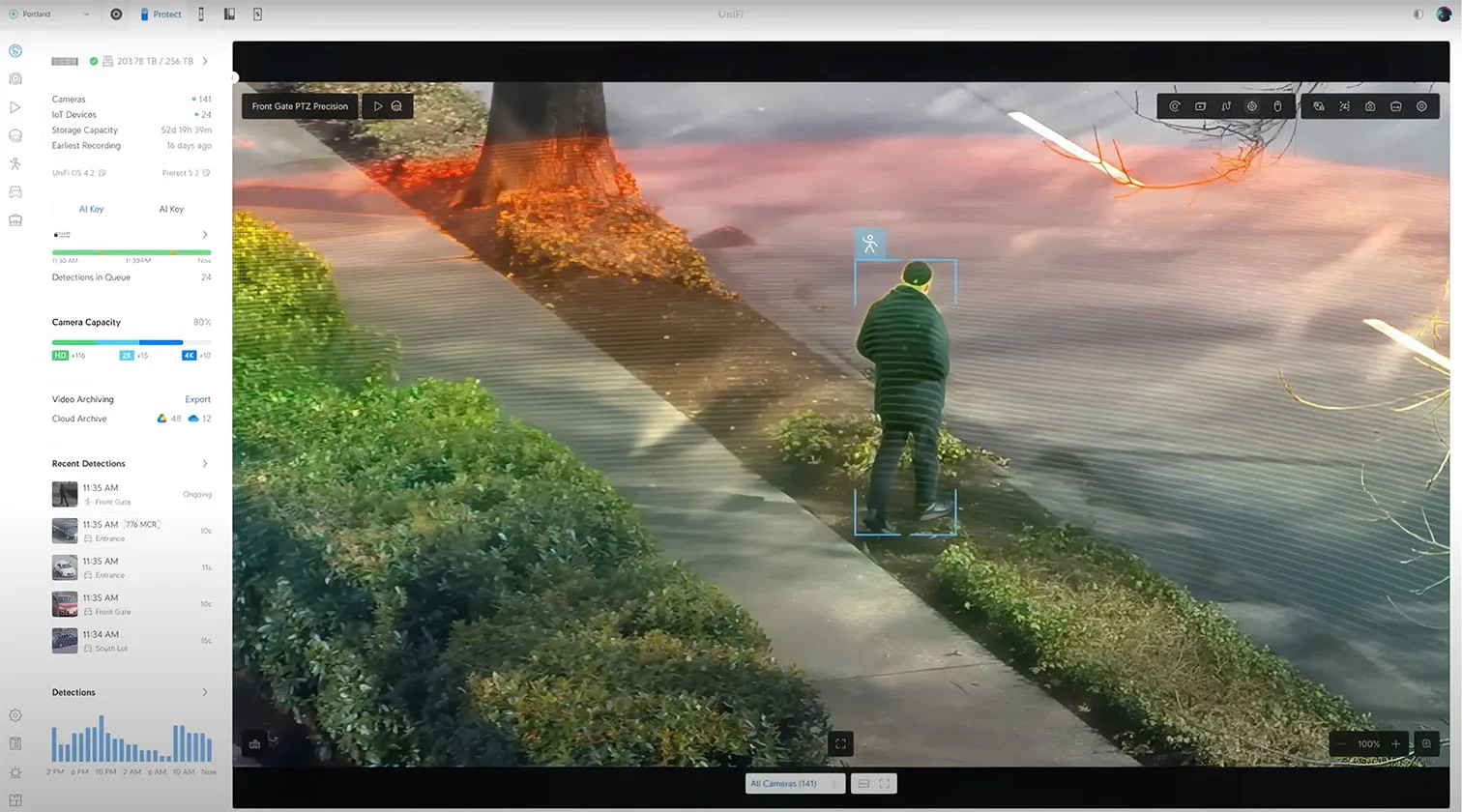

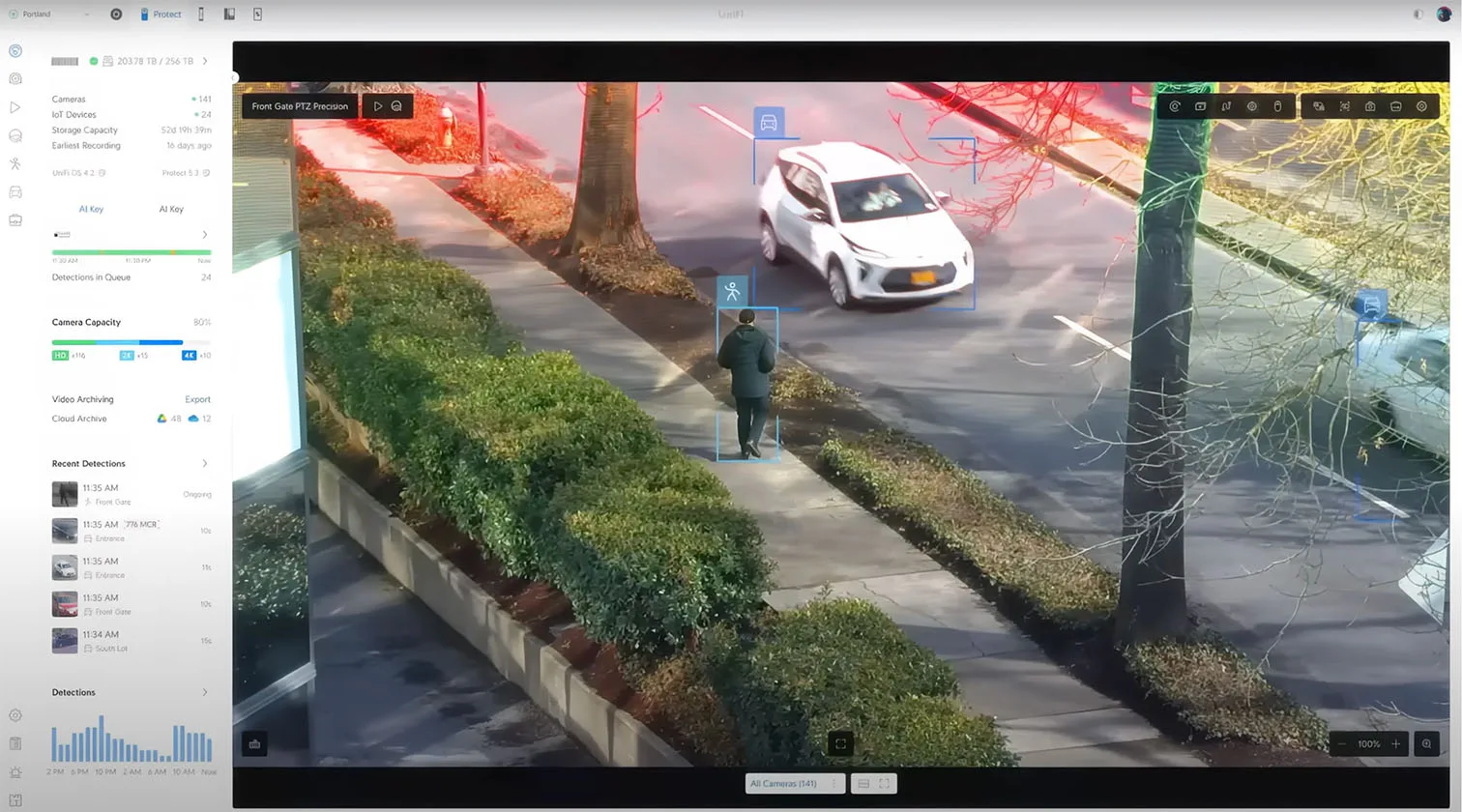

Real-Time People, Vehicle, Animal Detection
AI-powered object classification enables the camera to distinguish between people, vehicles, and animals in real time. This minimizes false alerts and allows precise automation. For example, detection of a person after-hours can trigger a UniFi Access lock or send a security notification, while a passing cat or parked vehicle is simply logged without escalation.
Detection overlays in the UniFi viewer show bounding boxes with classification icons, and the system intelligently ignores repetitive motion or background noise like trees or shadows. Combined with the 4K resolution, this provides a forensic-grade audit trail of any on-site movement.
Edge AI Processing and Alarm Integration
All AI detection occurs on-device thanks to the quad-core ARM Cortex-A53 chip. This local edge processing allows the AI PTZ Precision to make decisions instantly, without relying on a network or cloud roundtrip. It can trigger alarms, rotate to preset views, or activate webhooks with sub-second latency.
In multi-camera environments, this device plays a central role in receiving alarms from other UniFi Protect AI cameras and reacting accordingly. It supports alarm manager rules, tag-based zone activation, and inter-device linking. Whether it’s part of a large industrial deployment or a corporate perimeter, this is the fastest-reacting UniFi PTZ ever released.
Advanced PTZ Motor Control
Faster PTZ Motors with Precision Targeting

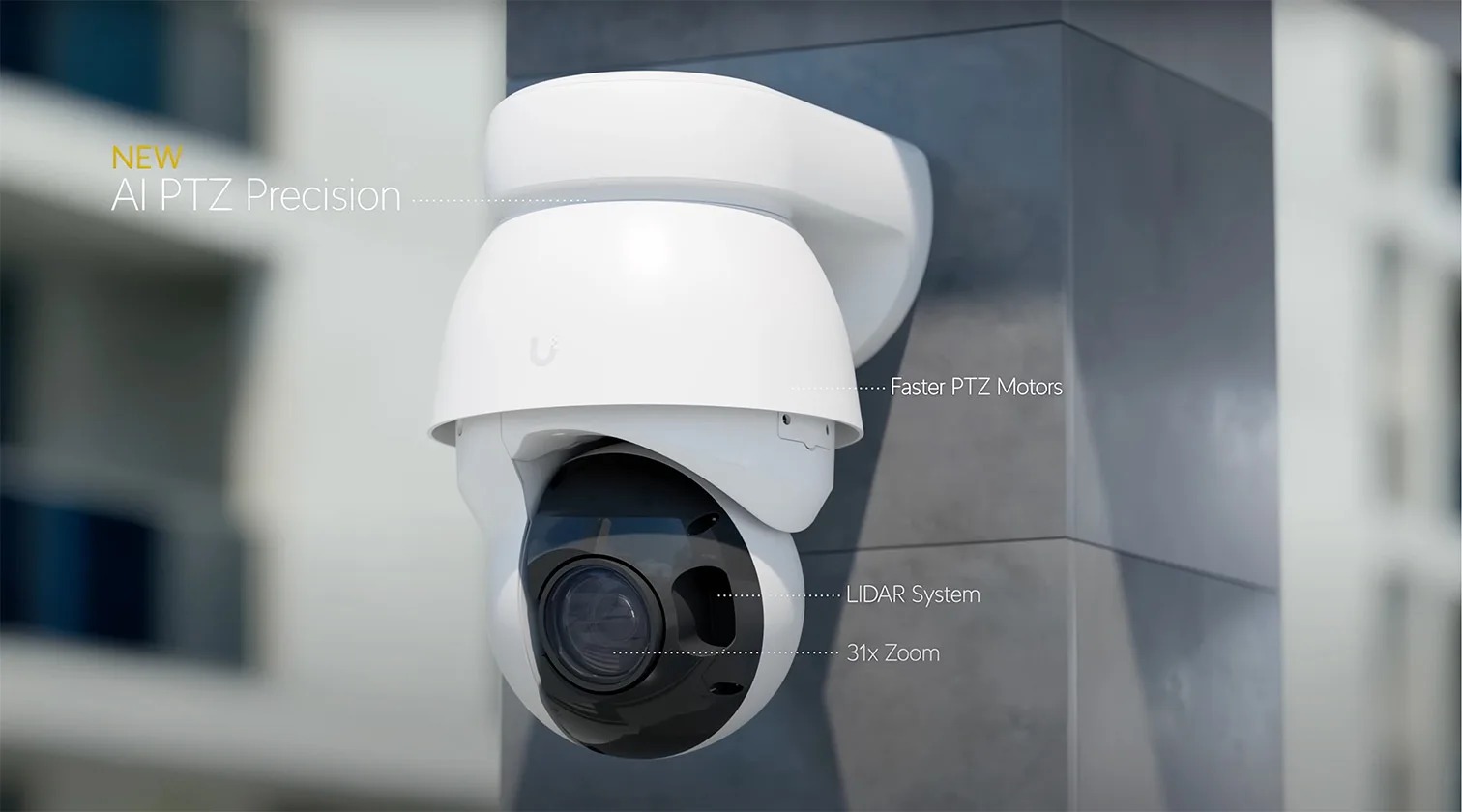

The UniFi AI PTZ Precision is equipped with newly redesigned high-speed motors, making it the most responsive model in the UniFi Protect camera system lineup. These motors are engineered to handle 360° continuous pan and 120° tilt with zero dead zones. This isn’t just about speed, it’s about precise control at any zoom level.
Thanks to the integration of the internal LiDAR system, these motors don’t overshoot or jitter when shifting focus points. Instead, the camera smoothly locks onto human or vehicle targets with minimal latency. When paired with a neighboring UniFi AI PTZ or a fixed AI camera acting as a spotter, the precision zoom and motor coordination deliver surgical accuracy.
This makes the Camera AI PTZ Precision ideal for tracking moving objects across large open areas like parking decks, walkways, or gated entry zones where unpredictable behavior is a concern.
Patrol, Preset, and Alarm Response Behavior
The PTZ control logic within UniFi Protect supports three dynamic camera behaviors: Patrol, Preset, and Alarm Response.

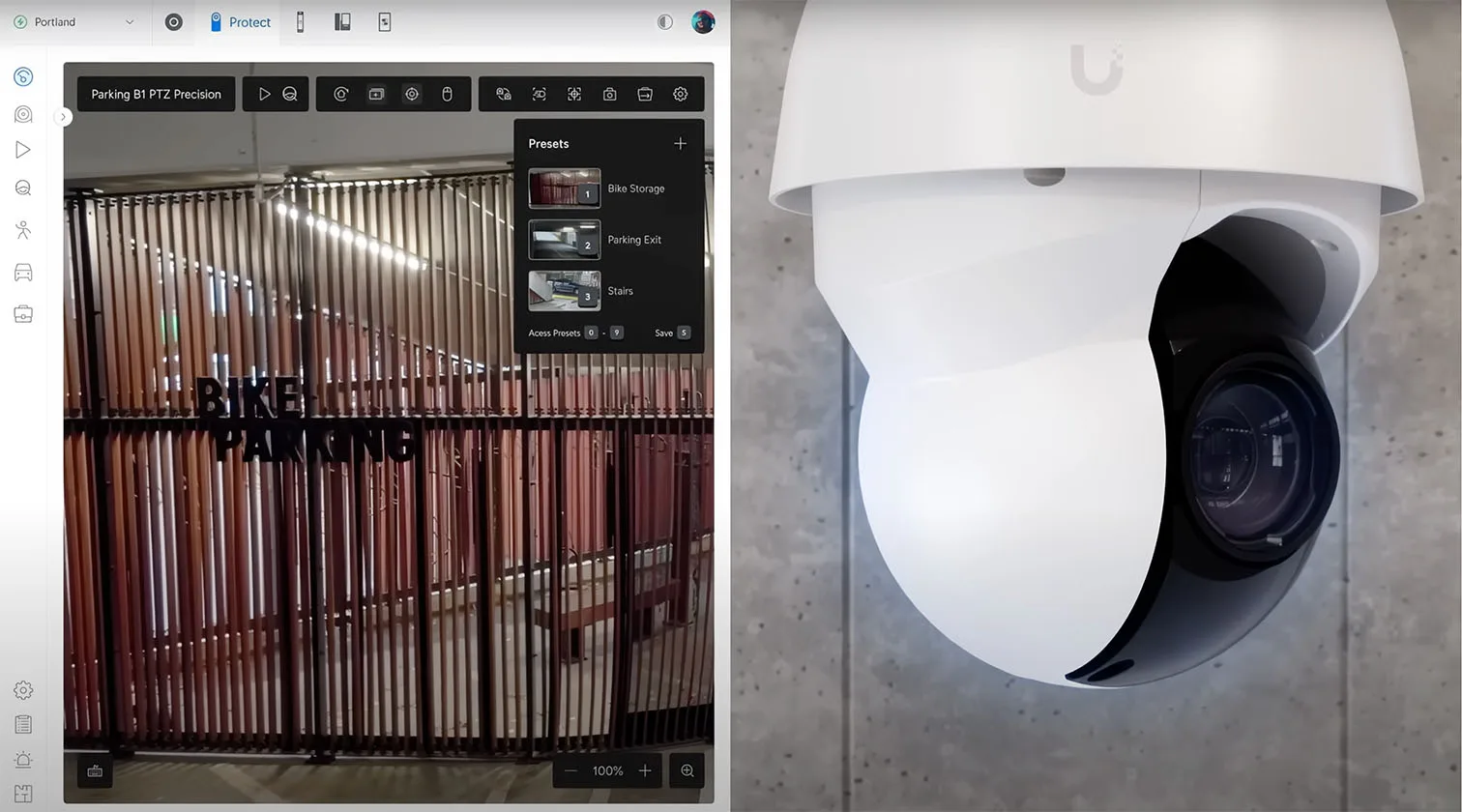

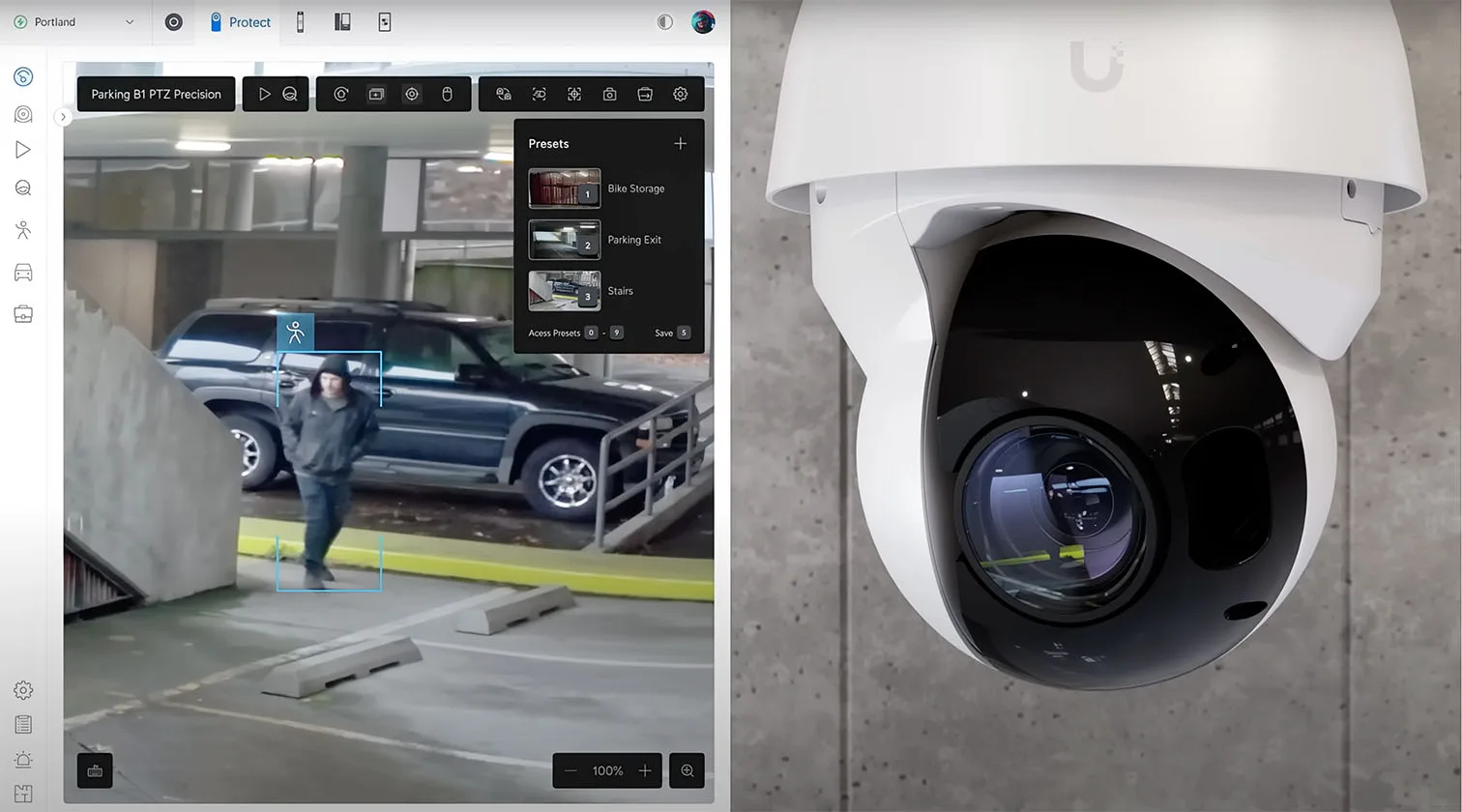

- Preset Mode: Users can configure multiple fixed points, such as “Parking Exit,” “Stairwell,” or “Bike Storage,” with the viewer instantly toggling between them based on security events or manual commands.
- Patrol Mode: Automates sweeping movements across defined waypoints, ideal for monitoring large perimeters in commercial or municipal deployments.

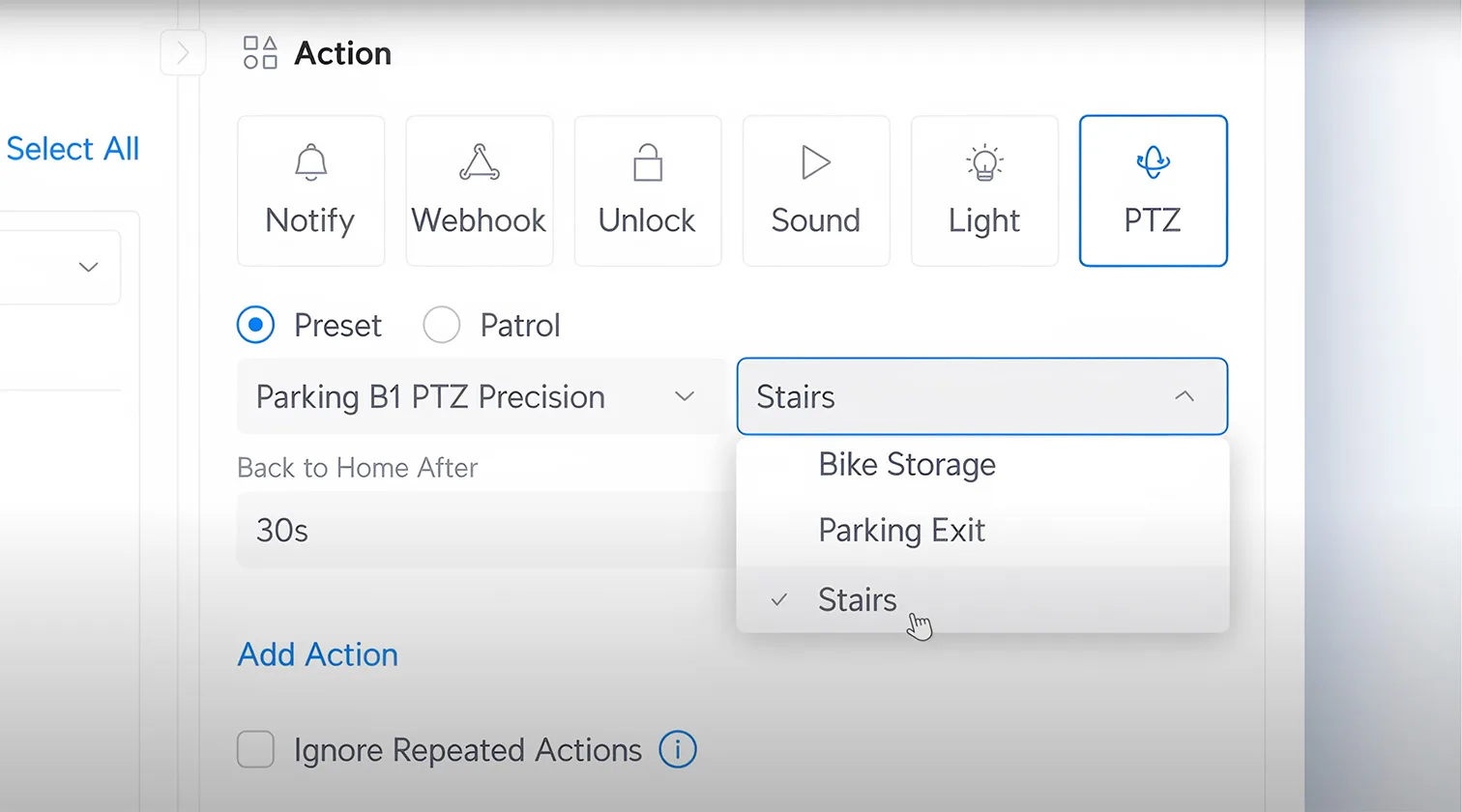

- Alarm Manager Integration: When motion, door contact, or AI events are triggered from other UniFi AI cameras or sensors, the UVC-AI-PTZ-Precision rotates instantly to the designated preset. It remains locked on the zone until the event concludes, then returns to home position.
All motion transitions respect soft limits and allow timed dwell per position. This tight integration with UniFi Protect ensures every action is logged and traceable.
Installation and Power Infrastructure

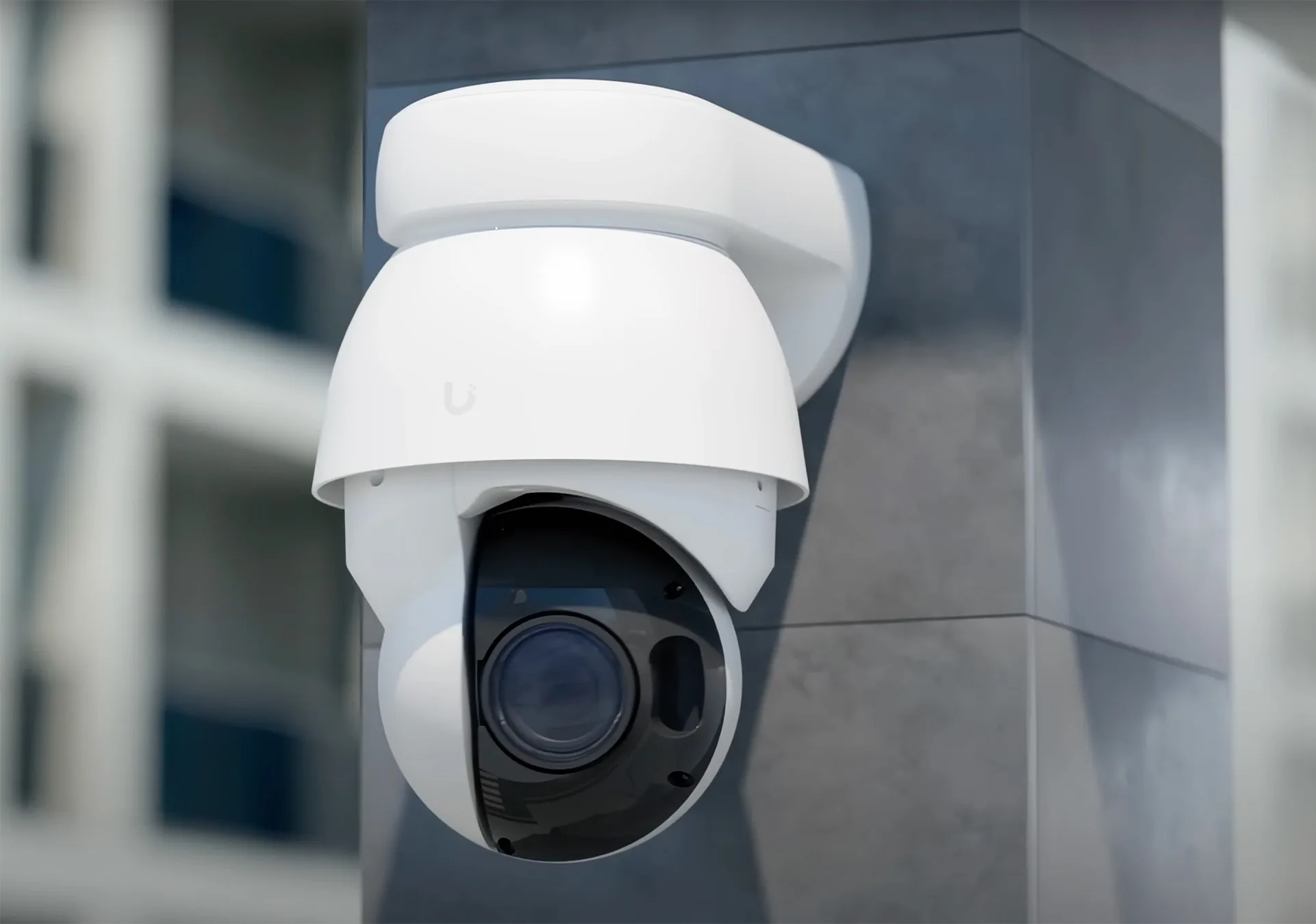

Wall, Pole, and Desk Mount Kits Included

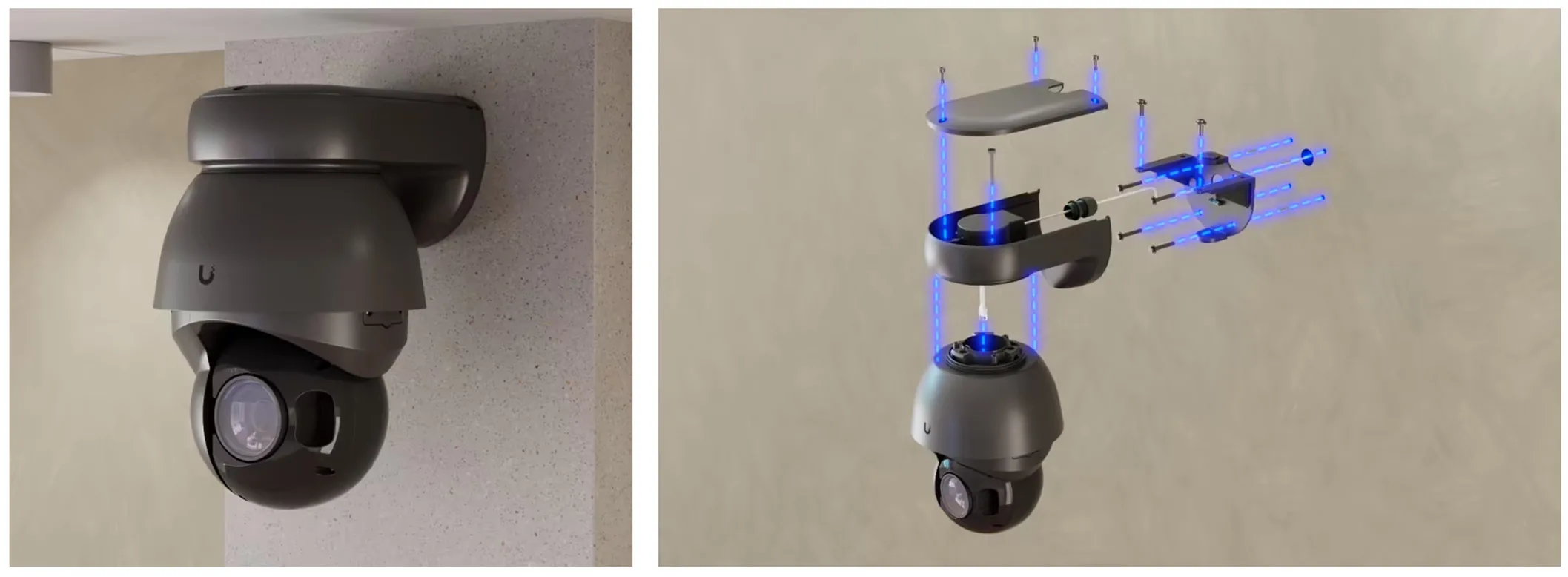

Unlike earlier models, the AI PTZ Precision includes all major mounting hardware out of the box. Each unit ships with:
- A heavy-duty wall mount with a concealed cabling route

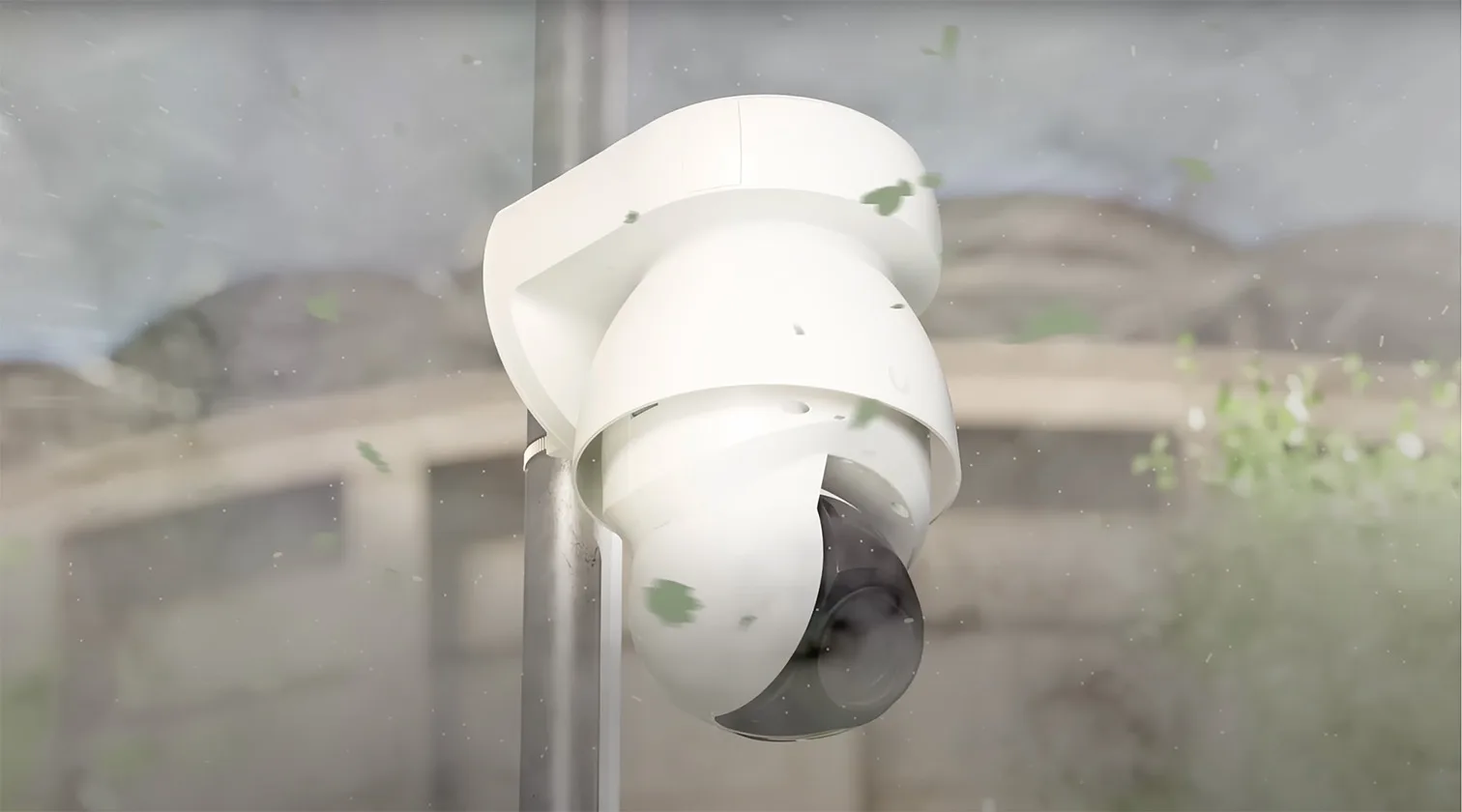

- A reinforced pole mount with dual-band clamps (for 50–150 mm diameter)
- A flat-surface desk/table stand for setup, maintenance, or test bench operations
The entire housing is made of powder-coated aluminum alloy, with a polycarbonate dome enclosure rated for full outdoor exposure. The mount design follows the same bolt pattern and installation logic as the AI PTZ Industrial, making retrofits easy for existing UniFi users.

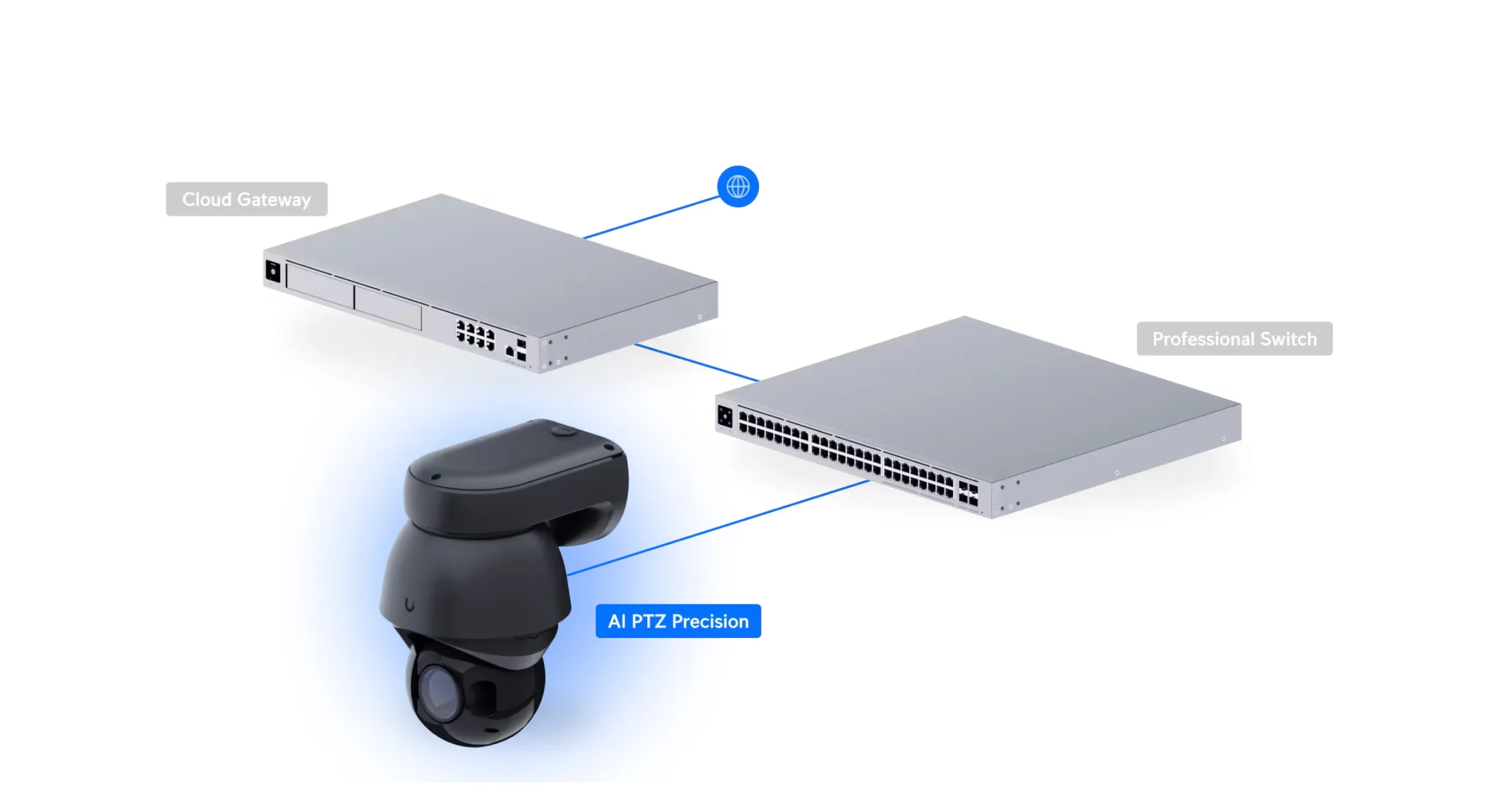

PoE++ Budget and Voltage Considerations (51W)
As an Industrial-grade 4K PTZ camera, this unit requires a PoE++ (802.3bt) injector or a compatible UniFi switch with at least 51W power delivery budget per port. The supported voltage range is 42.5–57V DC.
If you’re planning a multisite deployment or operating in cold climates, calculate your switch power headroom carefully. This is not a PoE or PoE+ device; standard ports will not deliver enough wattage for full motor rotation, IR illumination, and AI functions simultaneously.

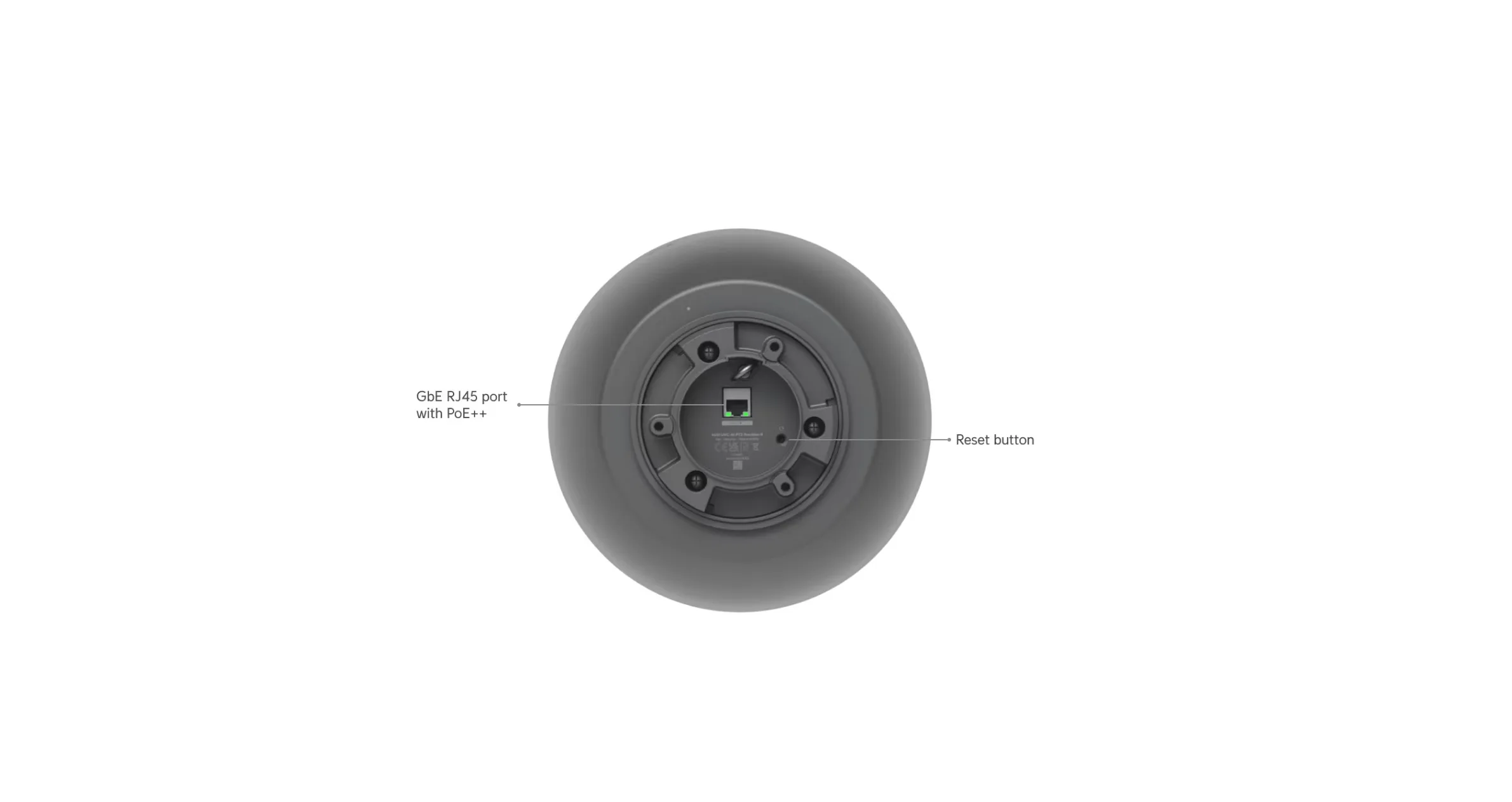

Cabling Access, GbE RJ45 Port, Reset Options
All network and power signals go through a single GbE RJ45 port located in the recessed underside of the camera body. The port is water-sealed, easily accessible, and supports PoE++ input with minimal signal loss.
Also located within the cavity is a physical reset button, useful for factory defaults during commissioning or recovery. The cabling route is internalized through the wall or pole bracket, preventing exposure to the elements and removing stress from the network cable during pan/tilt movement.
Combined with edge AI, 31x zoom, and LiDAR-based tracking, this physical design ensures that the UniFi AI PTZ Precision can be deployed in any modern commercial, municipal, or industrial site without compromise.
G4 PTZ vs AI PTZ Industrial vs AI PTZ Precision
Key Hardware Differences: Zoom, IR, Focus Tech
The UniFi AI PTZ Precision takes a definitive leap beyond the earlier G4 PTZ and AI PTZ Industrial models. While the G4 PTZ offered a 22x zoom and the Industrial pushed to 31x, the Precision also delivers 31x optical zoom but adds LiDAR-assisted autofocus, making it the first camera in the UniFi Protect lineup to integrate this level of real-time targeting fidelity.
Its 100-meter adaptive IR LED array also surpasses that of both predecessors in range and sharpness, maintaining visibility even in pitch-dark environments. The pan and tilt range is extended as well: 360° continuous pan and a 120° tilt, giving the Precision model greater vertical reach.
The side-by-side lens architecture remains similar to the Industrial, but the lens quality, edge clarity, and real-time responsiveness have been fine-tuned for enterprise applications. If you’re curious about the predecessor’s performance, our in-field test of the AI PTZ Industrial showcases the camera in an open-farm environment. Watch the full video:
AI Accuracy, Detection Range, and Recognition
While all three cameras support smart detections and UniFi Protect AI features, the Precision model’s edge AI engine handles facial recognition and license plate capture more efficiently. Its upgraded processor and dedicated AI module boost performance when identifying small, fast-moving objects, like a car crossing a parking gate or a person breaching a perimeter line.
In the AI PTZ Industrial test on a farm, detection worked reliably for both humans and livestock. But with the Precision’s AI refinements and LiDAR guidance, it becomes suitable even for densely populated environments or where multi-layered triggers are used for automation. We detail this in our deep-dive article: UniFi Protect New AI PTZ Industrial Tested | One Camera to Monitor an Entire Farm?!
When to Choose Each Model in Real Deployment
- G4 PTZ: Ideal for standard mid-range deployments where basic PTZ with good zoom is needed but budgets are constrained.
- AI PTZ Industrial: Great for large-scale outdoor areas like farms, campuses, or remote perimeter coverage.
- AI PTZ Precision: Designed for mission-critical environments airports, corporate campuses, and government facilities, where unmatched zoom, AI reliability, and integration with triggers like horn speakers or access control is a must.
If you want to compare this with the newer generation, our review of the G6 PTZ can help position where the AI PTZ Precision fits in a multi-camera UniFi Protect system.
Real-World Use Cases and Field Performance
Outdoor Campuses, Parking Lots, Rooftops
The AI PTZ Precision is not a theoretical upgrade; it’s already being positioned for real-world scenarios. This includes expansive outdoor campuses, high-risk parking zones, and urban rooftops where line-of-sight control and zoom precision are crucial. Its IP66 weather rating ensures resilience in these open-air environments, while its 328 ft IR range outclasses the AI PTZ Industrial’s output during fog and low visibility.

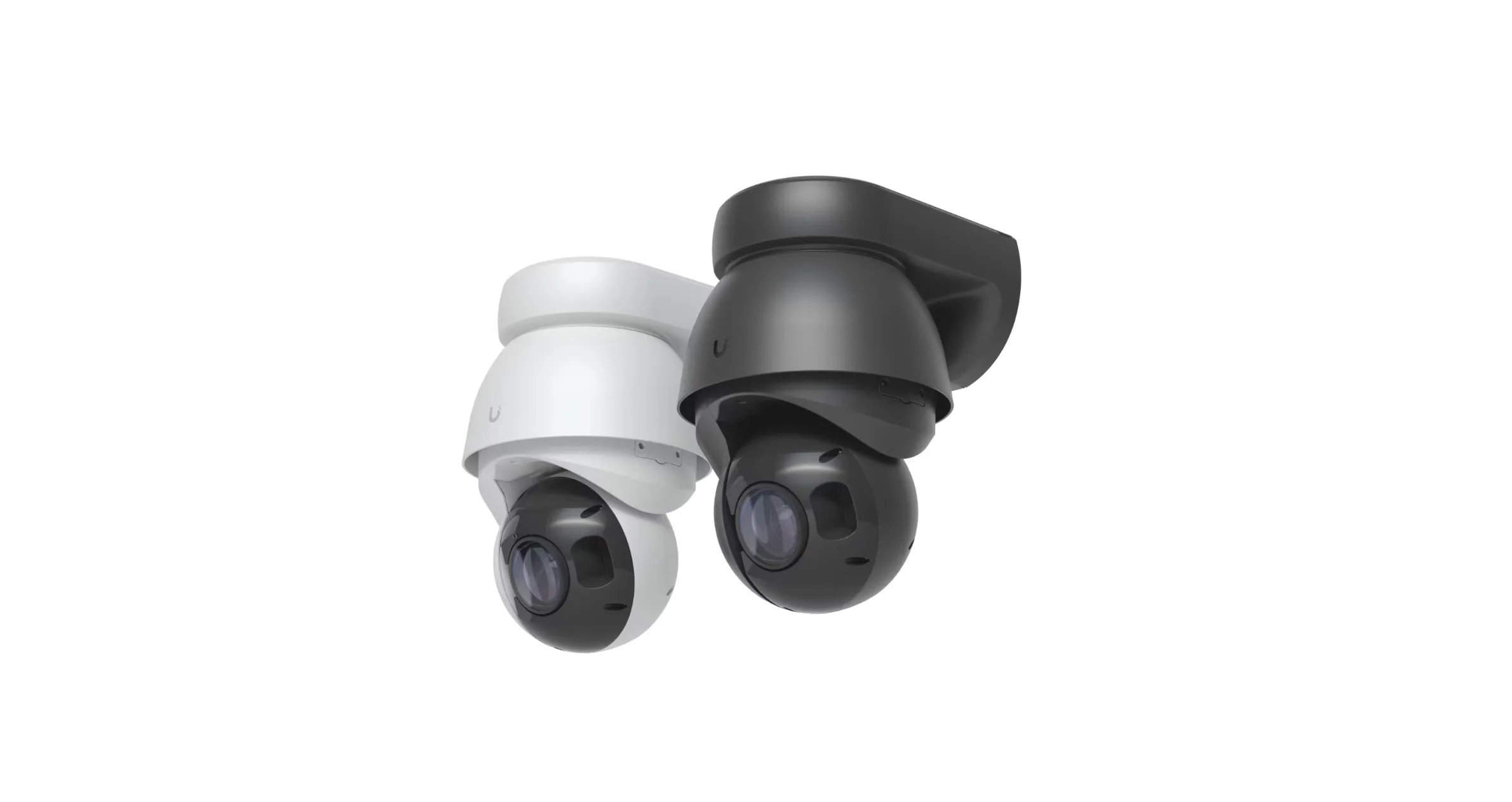

With two factory finishes, UVC-AI-PTZ-Precision-W and UVC-AI-PTZ-Precision-B, this camera blends into modern architectural lines without compromising its ruggedness. Rooftop deployments also benefit from the built-in LiDAR system, which eliminates the common PTZ issue of focus delay when tracking fast-moving objects at night.

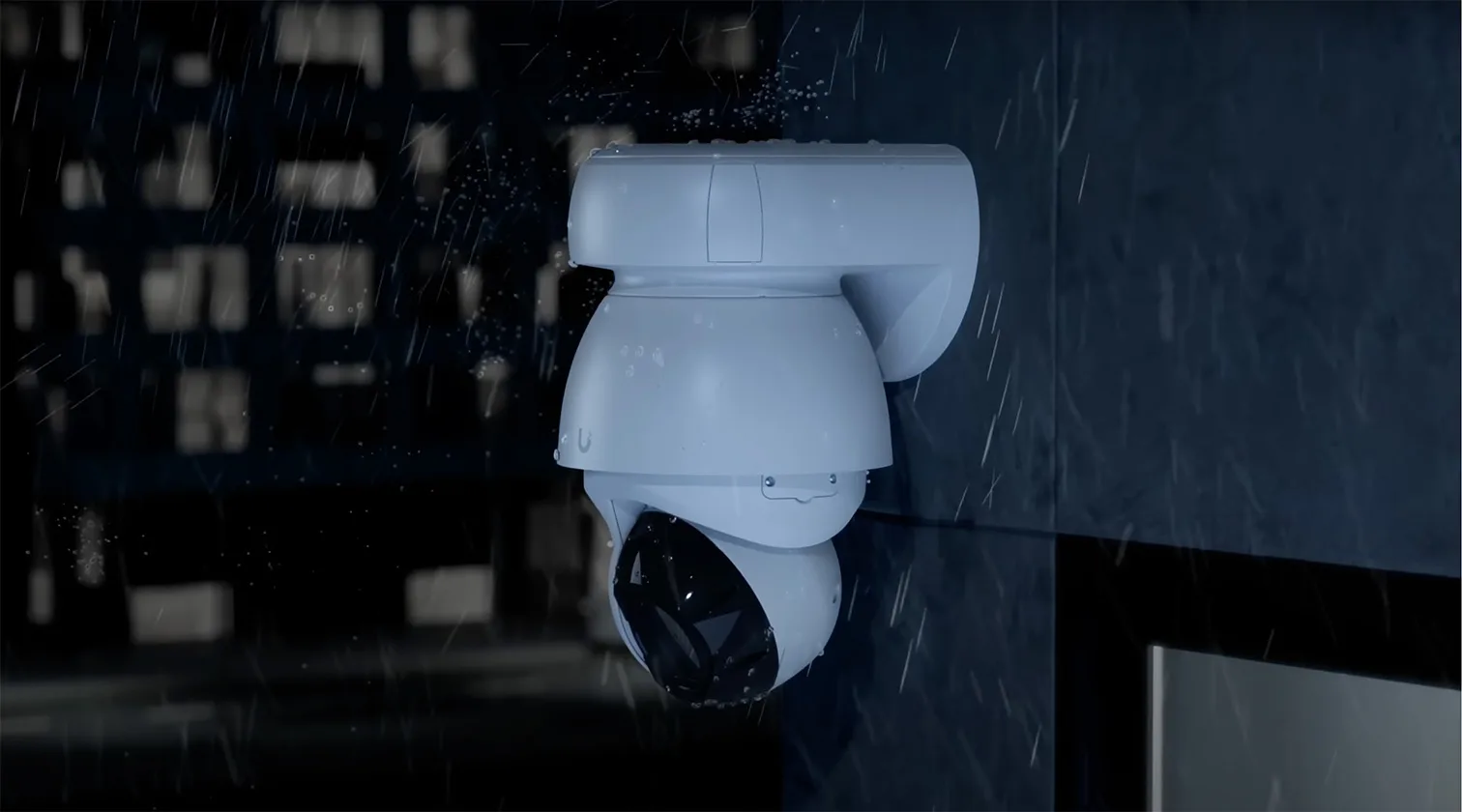

Tracking in Rain, Snow, and Low Light
This PTZ model operates in a temperature range from -40° to 50°C, making it ideal for areas with snowstorms, desert heat, and even maritime zones with salt air exposure. Real-world testing has shown that its 31x zoom and adaptive IR allow tracking through rain streaks and light fog, a scenario where earlier PTZ models would often blur or misfocus.
The AI engine also leverages motion filtering to reduce false positives from snowflakes or tree sway. Combined with faster motor response, you get a surveillance experience that doesn’t miss the moment when someone steps onto restricted ground.

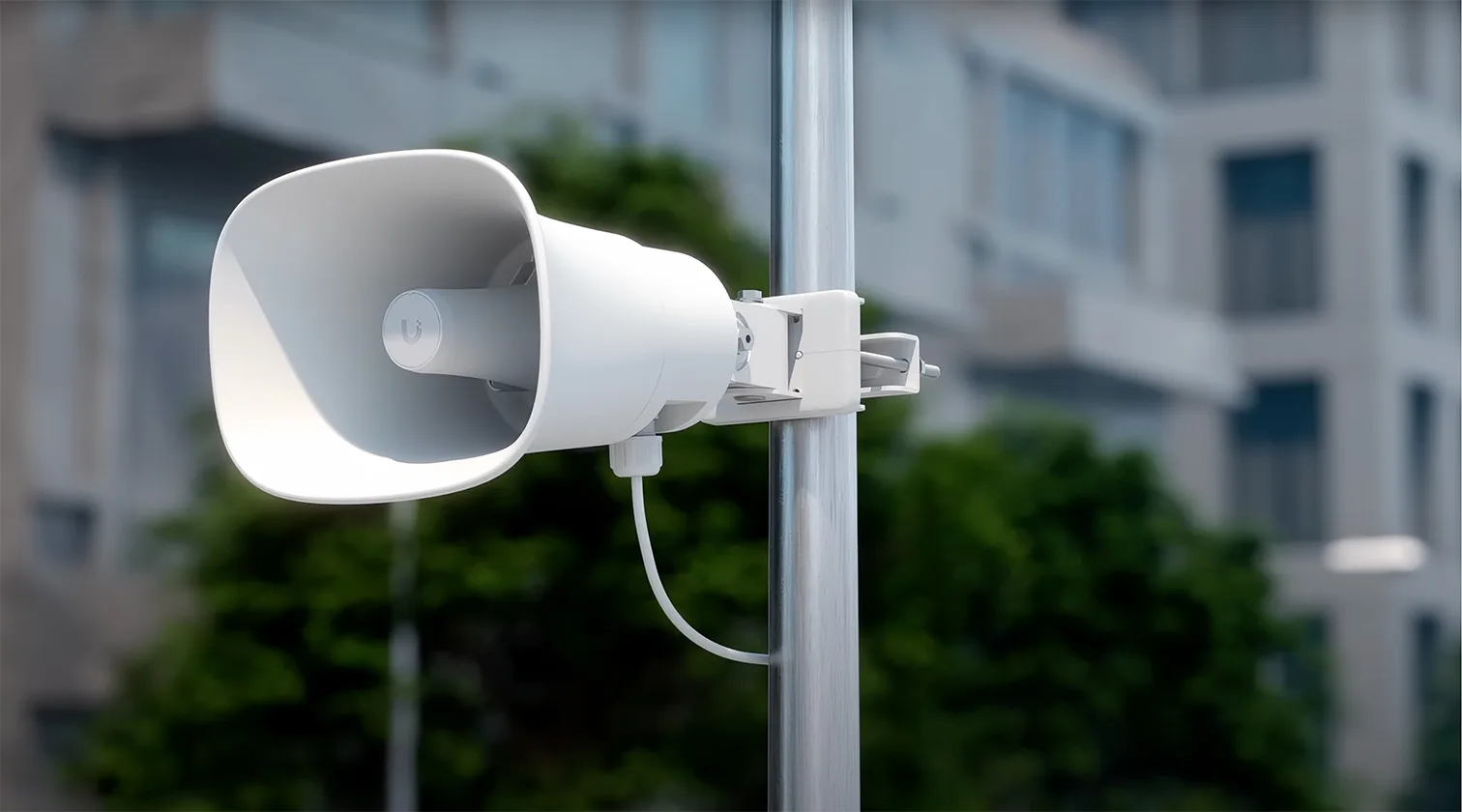

Integrating with AI Horn Speaker and Triggers
What makes the AI PTZ Precision a flagship isn’t just optics; it’s its synergy with the broader UniFi ecosystem. When integrated with the new UniFi AI Horn Speaker, the camera can trigger automated deterrents via Alarm Manager. For instance, if the camera detects a person near a construction site gate after hours, the horn can play a real-time voice prompt: “You are entering a restricted area.”
This type of responsive automation transforms surveillance from passive to proactive. Combined with motion alerts and edge AI decision-making, the UniFi AI PTZ Precision ensures that operators not only see threats but also act on them before they escalate.
Managing Alerts with UniFi Protect Viewer
Preset Tagging, Zone Triggers, and Scope Control

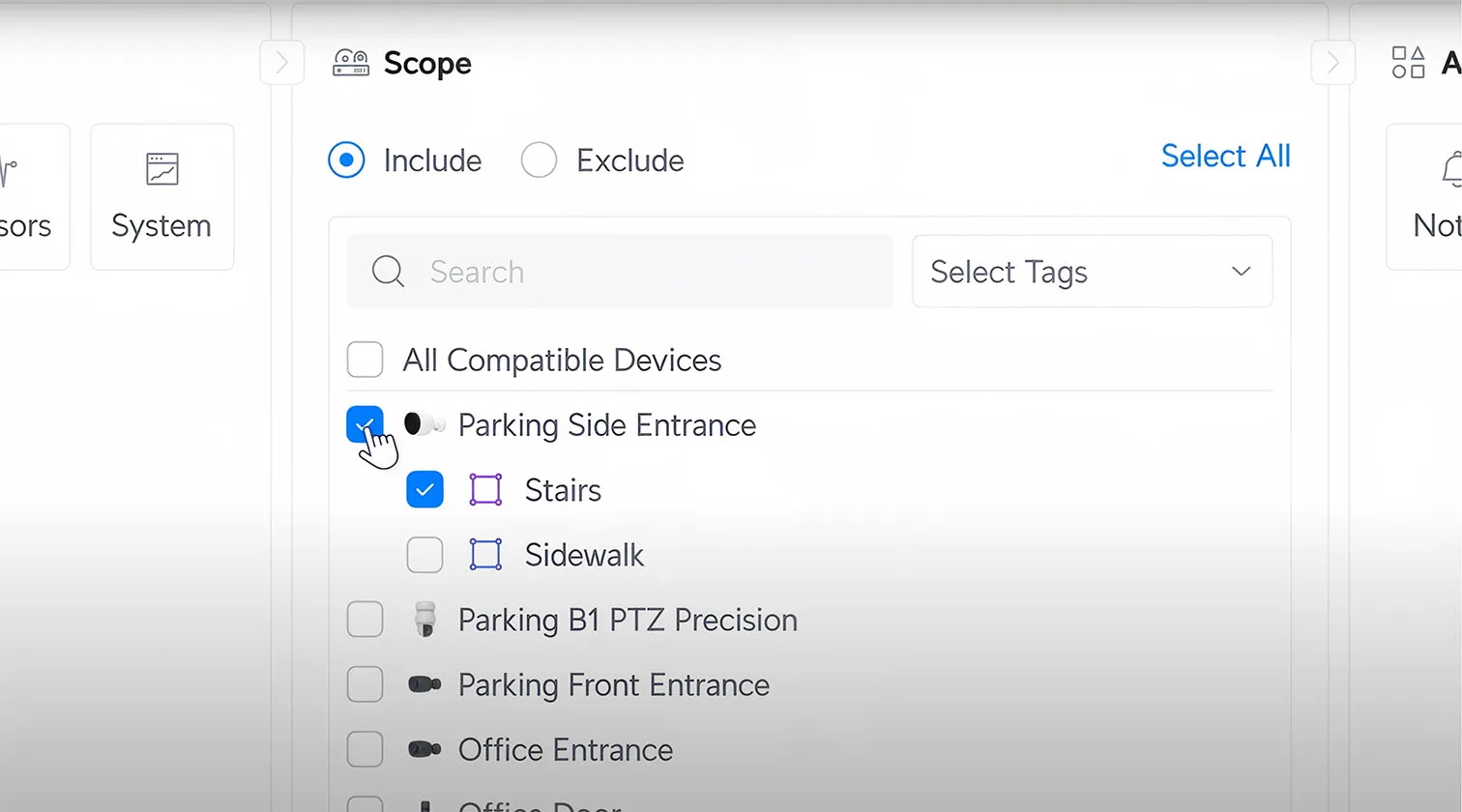

With the UniFi Protect camera system, managing AI PTZ Precision alerts becomes an intuitive process. Users can create and label presets for specific surveillance targets, define detection zones, and assign scope boundaries for better AI clarity. These triggers can activate real-time alerts for anything from unexpected vehicle movement to someone stepping into a restricted area.
The UniFi Protect viewer allows you to scroll through alert timelines with frame-accurate previews and jump to moments when the camera’s detection engine identifies new movement types or unfamiliar faces. Tagging presets with smart labels like “west fence gate” or “employee entrance” allows for organized monitoring across multiple cameras.
Leveraging the Alarm Manager and Multi-Cam Spotting
What sets the AI PTZ Precision apart is how smoothly it works with the Alarm Manager and other UniFi AI cameras. Using spotter cameras like G6 Bullet or G5 Turret, the system can hand off detection events to the PTZ, which then zooms, locks, and follows. This functionality creates a virtual perimeter across multiple viewpoints.
Alarm Manager integration becomes particularly powerful when paired with presets and AI horn triggers, letting you automate audible deterrence or notifications based on recognized faces, license plates, or animal movement.
Firmware, NDAA, and Future Availability
Software Support and Protect OS Compatibility
The UniFi Protect AI PTZ Precision is fully supported by the latest UniFi Protect platform. It works seamlessly with the most recent UniFi OS consoles, including the Dream Machine Pro SE and Cloud Key Gen2 Plus. If you’re unsure which base station suits your deployment, this UniFi OS Console guide walks through the selection process in depth.
Updates for firmware and AI features are delivered via the Protect backend, keeping your detection engine, face and plate recognition, and alert integration current without any manual flashing.
Compliance, MicroSD Support, and Coming Q3 2025
Engineered for high-security sites, the AI PTZ Precision meets full NDAA compliance, making it deployable in government and enterprise-grade environments. The MicroSD card slot provides edge storage redundancy, ideal for areas with fluctuating network loads or backup-critical footage.
This model is expected to become officially available in Q3 2025. You can track its integration alongside other flagship updates in this article on Ubiquiti’s next-gen PTZ roadmap, which includes the G6 and AI camera lines.
Final thoughts and Upgrade Path
Should You Upgrade from G4 or AI PTZ Industrial?
If you’re using a UniFi G4 PTZ or even the AI PTZ Industrial, the UniFi AI PTZ Precision presents a clear generational leap. With a 31x optical zoom, LiDAR-assisted autofocus, adaptive IR LEDs, and faster PTZ motors, it outperforms both predecessors in speed, clarity, and AI responsiveness.
G4 users will immediately notice better zoom control, enhanced image definition in low-light conditions, and tighter object tracking. Industrial model users will appreciate the faster targeting and the flexibility of the new multi-mount options. For large outdoor environments or sensitive entry points, the Precision model minimizes missed detections and improves your investigation timeframes significantly.
Who Needs UniFi AI PTZ Precision
This model is not for everyone, and that’s the point. The AI PTZ Precision is built for critical installations that demand high-resolution zoom, long-range clarity, and real-time AI automation. Ideal scenarios include city intersections, parking facility perimeters, energy sites, and smart building projects with multi-layered surveillance.
If you’re building a modern UniFi Protect camera system from the ground up, this is the flagship to anchor around.
Pipl Systems: Your Trusted Security Resource
At Pipl Systems, we provide more than just specs—we test, compare, and explain what matters in real-world use. With in-depth coverage on UniFi AI cameras, PTZ solutions, and network infrastructure, we help security pros and decision-makers choose the right solution for the job.
Explore our technical guides, comparison charts, and deployment walkthroughs. Pipl Systems is your expert hub for everything UniFi Protect and beyond.
FAQ
What is the zoom range of the Camera AI PTZ Precision?
It features a 31x optical zoom lens, offering a horizontal field of view from 61.7° wide down to a narrow 2.1°, ideal for long-range detail capture.
How does LiDAR help with focus?
LiDAR-assisted focus allows the camera to instantly calculate distance to the target, enabling rapid, accurate focus transitions even in low-light or dynamic scenes.
Is it compatible with older UniFi Protect systems?
Yes, the AI PTZ Precision integrates with current UniFi Protect OS setups and is backward compatible with existing UniFi OS Consoles that support Protect.
Can I mount it indoors or outdoors?
Absolutely. It’s IP66 weatherproof and includes wall, pole, and desk mounts, making it suitable for both indoor ceilings and rugged outdoor deployments.
What PoE++ equipment is needed?
This camera requires a PoE++ injector or switch capable of delivering 51W. Ensure your infrastructure meets IEEE 802.3bt standards for optimal performance.
What’s the difference between UVC-AI-PTZ-Precision-B and -W?
Only the housing color “B” is black, and “W” is white. Both models offer identical features, mounts, and performance specifications.
